TRANSMISSION LINE MONITORING PRODUCTS [TSTR HARDWARE]

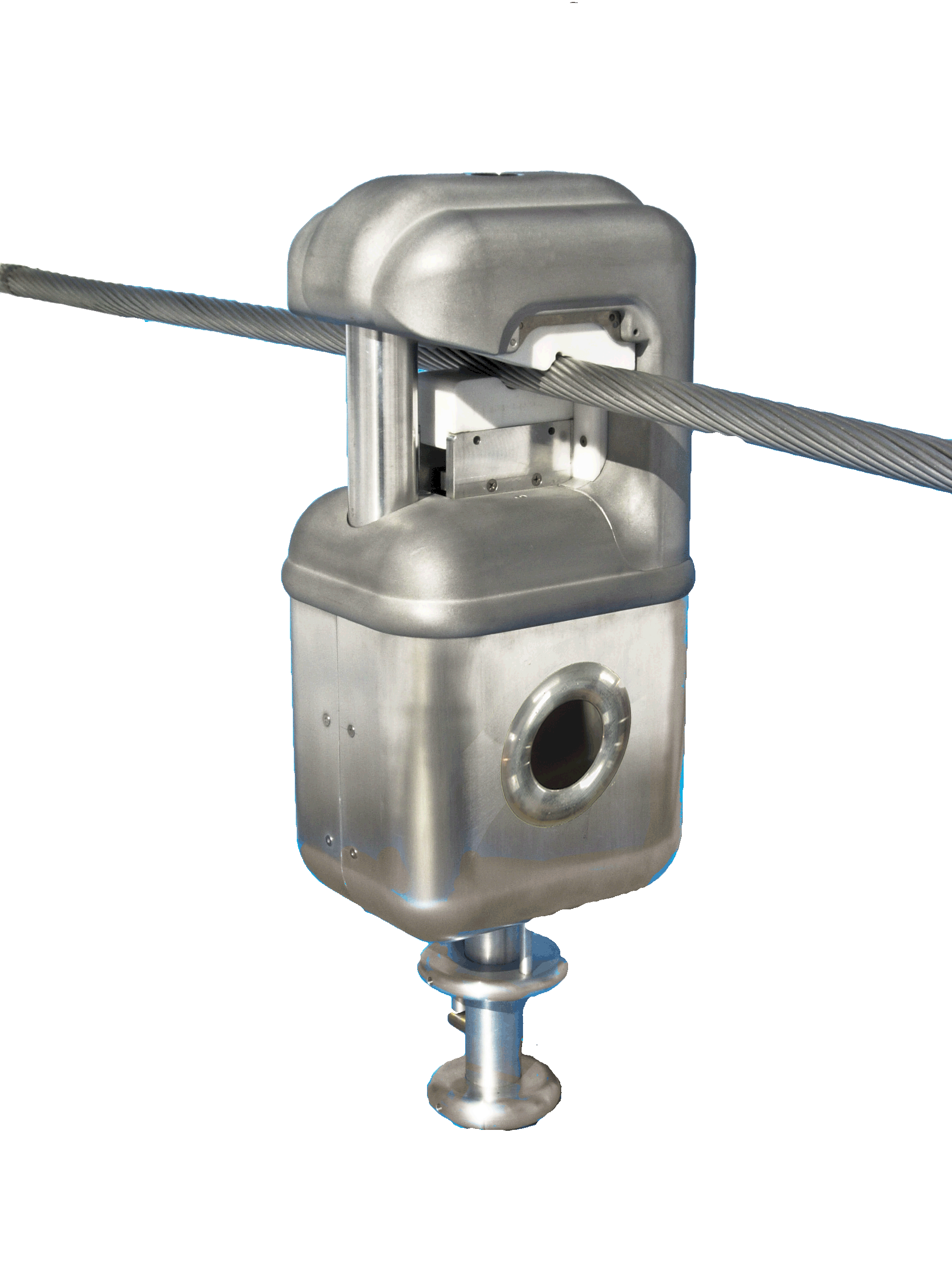

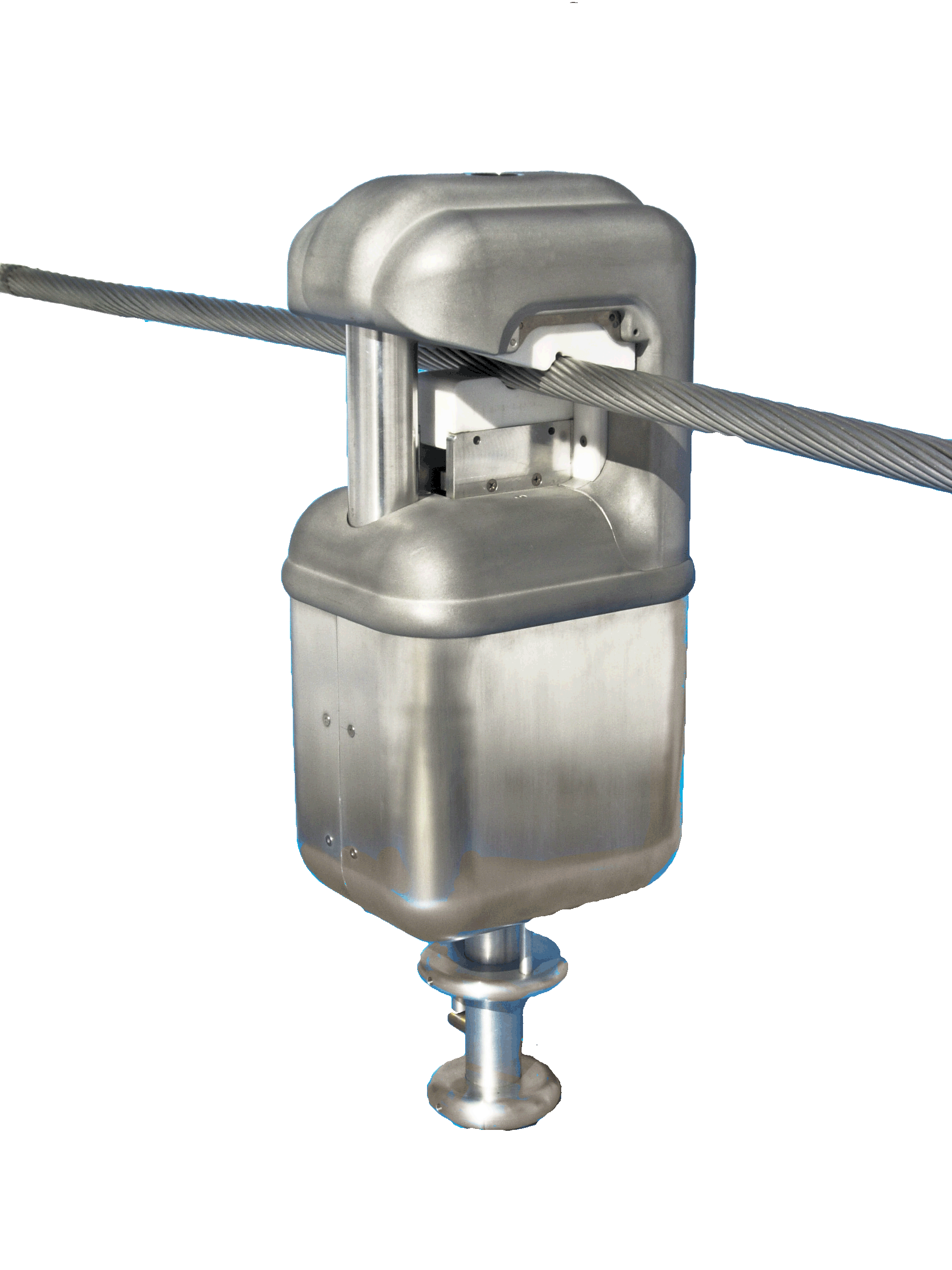

Line Mounted Self-Powered Overhead Electric Power Transmission Line Monitoring Units

PART Part #
Series 500 Basic - 10 parameters 500
  • (1) Conductor Temperature
  • (2) Ambient Temperature
  • (3) Total Solar Radiation
  • (4) Relative Humidity
  • (5) Barometric Pressure
  • (6) Effective Wind Velocity
  • (7) True RMS Line Current & Waveforms
  • (8) Fault Current & Waveforms
  • (9) Fault Current Direction
  • (10) Lightning Stroke Current & Waveforms
  • Radio Transmitter/Receiver 900 MHz
  • Variable Frequency Antenna
  • GPS Location
  • Transfer Trip

PART Part #
Series 500 Option A - 16 Parameters 500A
  • (1) Conductor Temperature
  • (2) Ambient Temperature
  • (3) Total Solar Radiation
  • (4) Relative Humidity
  • (5) Barometric Pressure
  • (6) Effective Wind Velocity
  • (7) True RMS Line Current & Waveforms
  • (8) Fault Current & Waveforms
  • (9) Fault Current Direction
  • (10) Lightning Stroke Current & Waveforms
  • (11) Line Sag & Clearance
  • (12) Rain Sensor**
  • (13) Ice Thickness**
  • (14) Tower Tilt-Broken Conductor
  • (15) Insulator Swing
  • (16) Real Time Thermal Ratings (RTTRS)
  • Radio Transmitter/Receiver 900 MHz
  • Variable Frequency Antenna
  • GPS Location
  • Transfer Trip
** Production prototype Units only

  PART Part #
Series 500 Option B - 27 Parameters 500B
  • (1) Conductor Temperature
  • (2) Ambient Temperature
  • (3) Total Solar Radiation
  • (4) Relative Humidity
  • (5) Barometric Pressure
  • (6) Effective Wind Velocity
  • (7) True RMS Line Current & Waveforms
  • (8) Fault Current & Waveforms
  • (9) Fault Current Direction
  • (10) Lightning Stroke Current & Waveforms
  • (11) Line Sag & Clearance
  • (12) Rain Sensor**
  • (13) Ice Thickness**
  • (14) Tower Tilt-Broken Conductor
  • (15) Insulator Swing
  • (16) Real Time Thermal Ratings (RTTRS)
  • (17) True RMS Line Voltage & Waveforms
  • (18) Fault Voltage & Waveforms
  • (19) Lightning Stroke Voltage & Waveforms
  • (20) Total Harmonic Current Distortion THDi
  • (21) Total Harmonic Voltage Distortion THDv
  • (22) Power Factor
  • (23) MW
  • (24) MVAr
  • (25) MVA
  • (26) Conductor Vibration
  • (27) Synchro-phasor
  • Radio Transmitter/Receiver 900 MHz
  • Variable Frequency Antenna
  • GPS Location
  • Transfer Trip
** Production prototype Units only

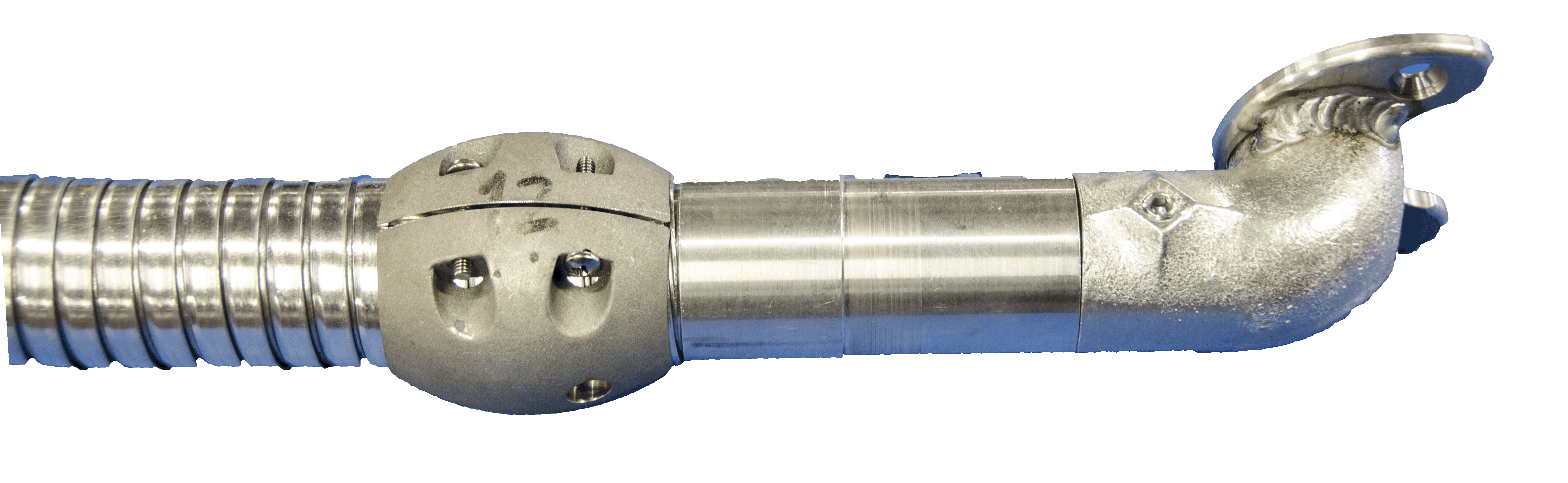

Assembly for Series 500B, Jumper on TSTR Unit End and Quick Disconnect Fuse.  Part# LEFT MOUNT RIGHT MOUNT Assembly of Jumper on TSTR Unit End and Quick Disconnect Fuse
M547-14

  PART Part #
Series 500 Option C - 28 Parameters 500C
  • (1) Conductor Temperature
  • (2) Ambient Temperature
  • (3) Total Solar Radiation
  • (4) Relative Humidity
  • (5) Barometric Pressure
  • (6) Effective Wind Velocity
  • (7) True RMS Line Current & Waveforms
  • (8) Fault Current & Waveforms
  • (9) Fault Current Direction
  • (10) Lightning Stroke Current & Waveforms
  • (11) Line Sag & Clearance
  • (12) Rain Sensor**
  • (13) Ice Thickness**
  • (14) Tower Tilt-Broken Conductor
  • (15) Insulator Swing
  • (16) Real Time Thermal Ratings (RTTRS)
  • (17) True RMS Line Voltage & Waveforms
  • (18) Fault Voltage & Waveforms
  • (19) Lightning Stroke Voltage & Waveforms
  • (20) Total Harmonic Current Distortion THDi
  • (21) Total Harmonic Voltage Distortion THDv
  • (22) Power Factor
  • (23) MW
  • (24) MVAr
  • (25) MVA
  • (26) Conductor Vibration
  • (27) Synchro-phasor
  • (28) Photo Image Capture**
  • Radio Transmitter/Receiver 900 MHz
  • Variable Frequency Antenna
  • GPS Location
  • Transfer Trip
** Production prototype Units only
NOTE: Select only Photo Image or Rain Sensor Feature
Assembly for TSTR 500C, Jumper on TSTR Unit End and Quick Disconnect Fuse.   Part# LEFT MOUNT RIGHT MOUNTAssembly of Jumper on TSTR Unit End and Quick Disconnect Fuse
M547-14

Series 500 Conductor Cleaning Parts

    PART    Part #

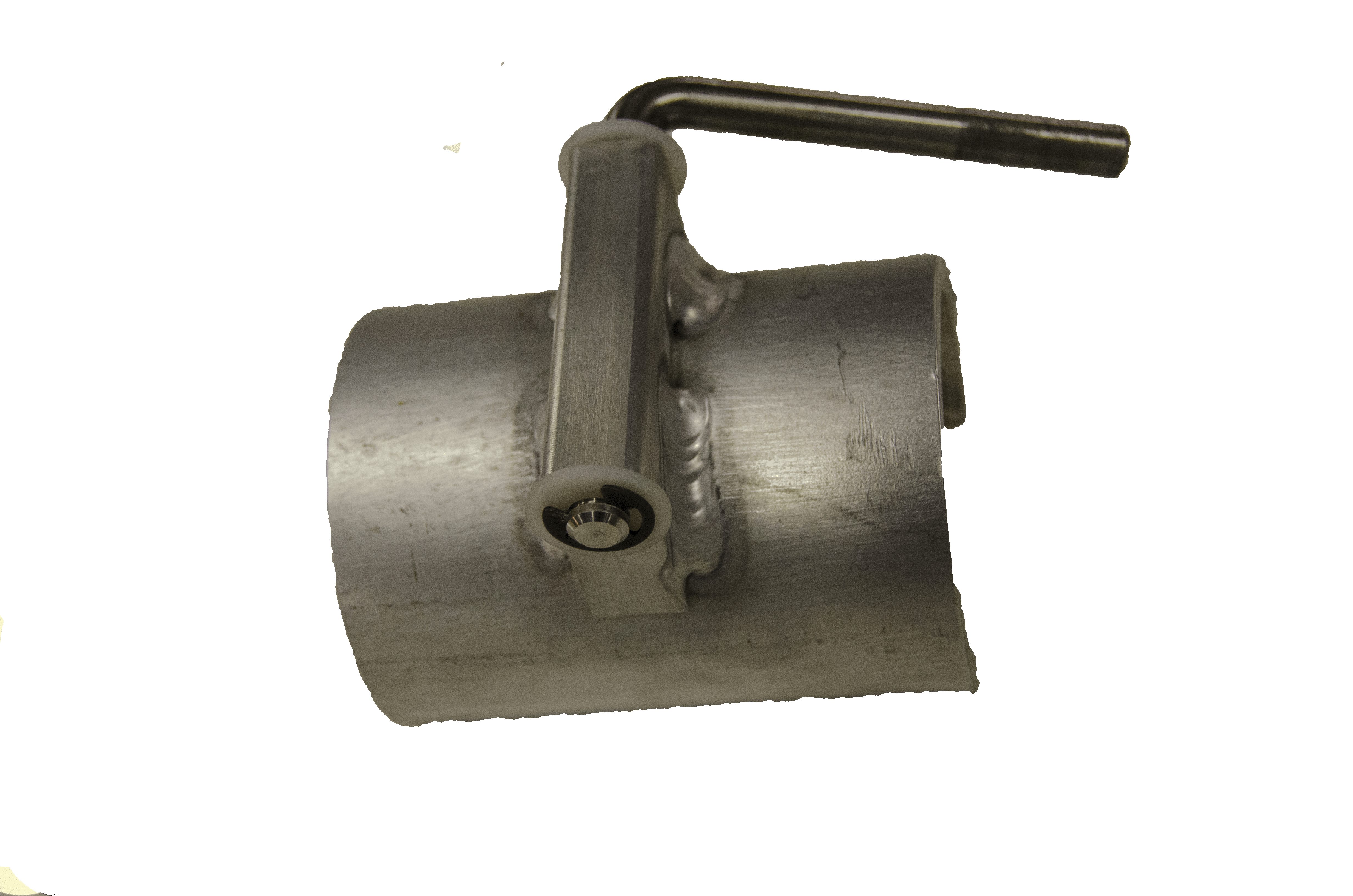

Series 500 Conductor Cleaning Brush Assembly including Adapter and Drive End
(Fits Range A 0.500 inch O.D. to Range D (1.25 inch to 1.50 inch) Conductors)		 M546-7
Series 500 Conductor Cleaning Brush Assembly M546
Series 500 Hotstick Drive End M519

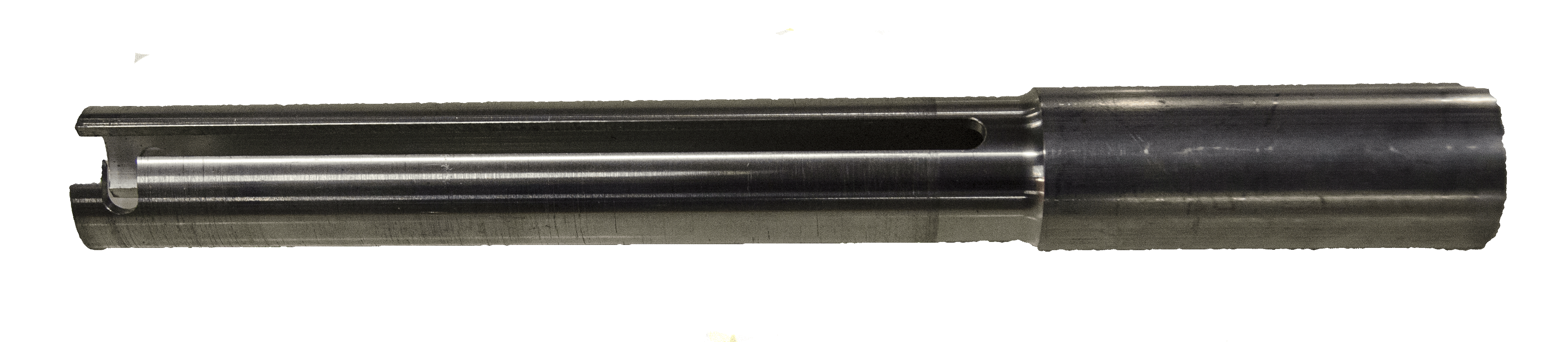

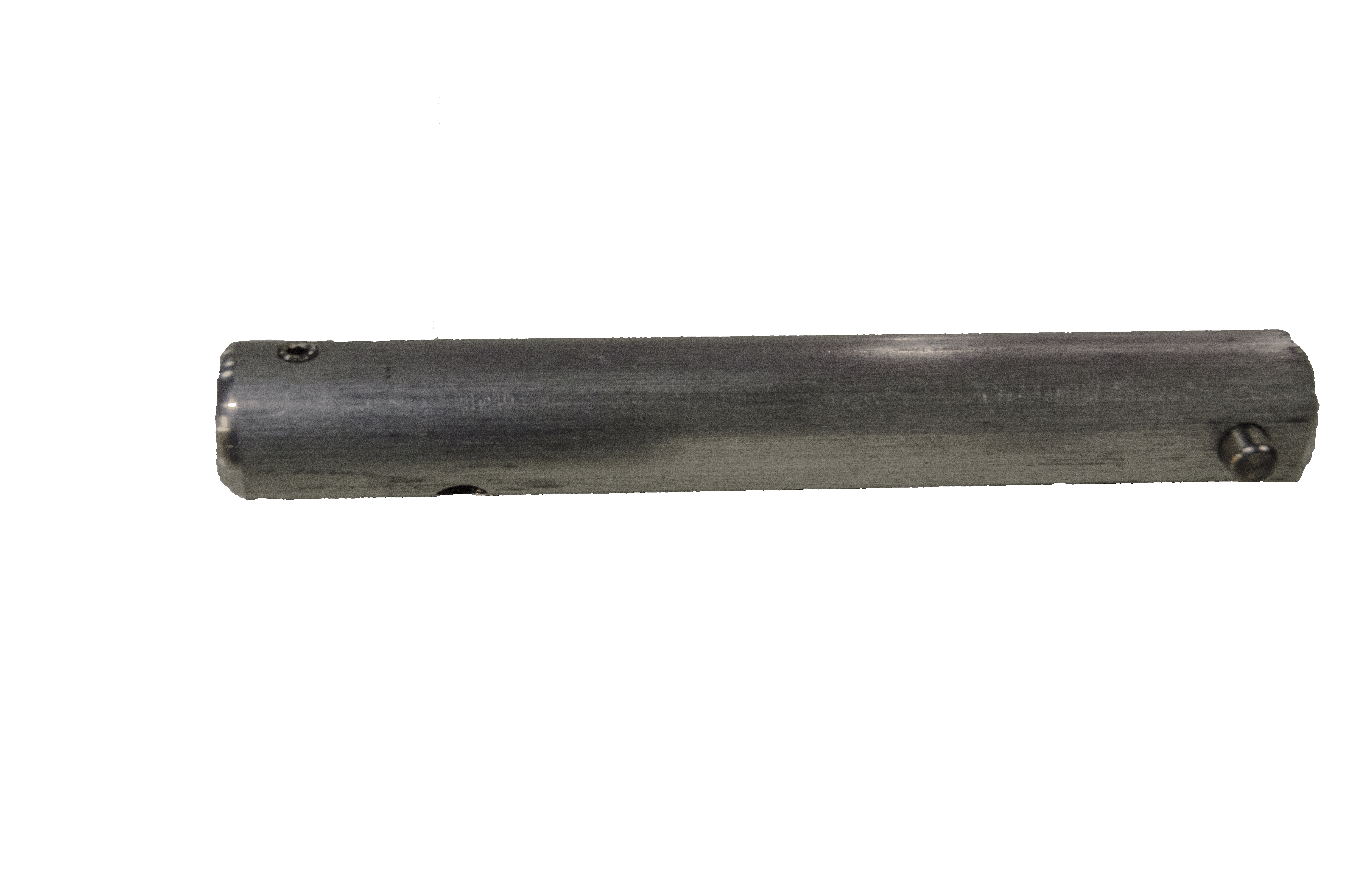

Series 500 Hotstick Driver Adapter M546-6
Series 500 Hotstick Quick Driver (for Battery Powered Drill) M519A

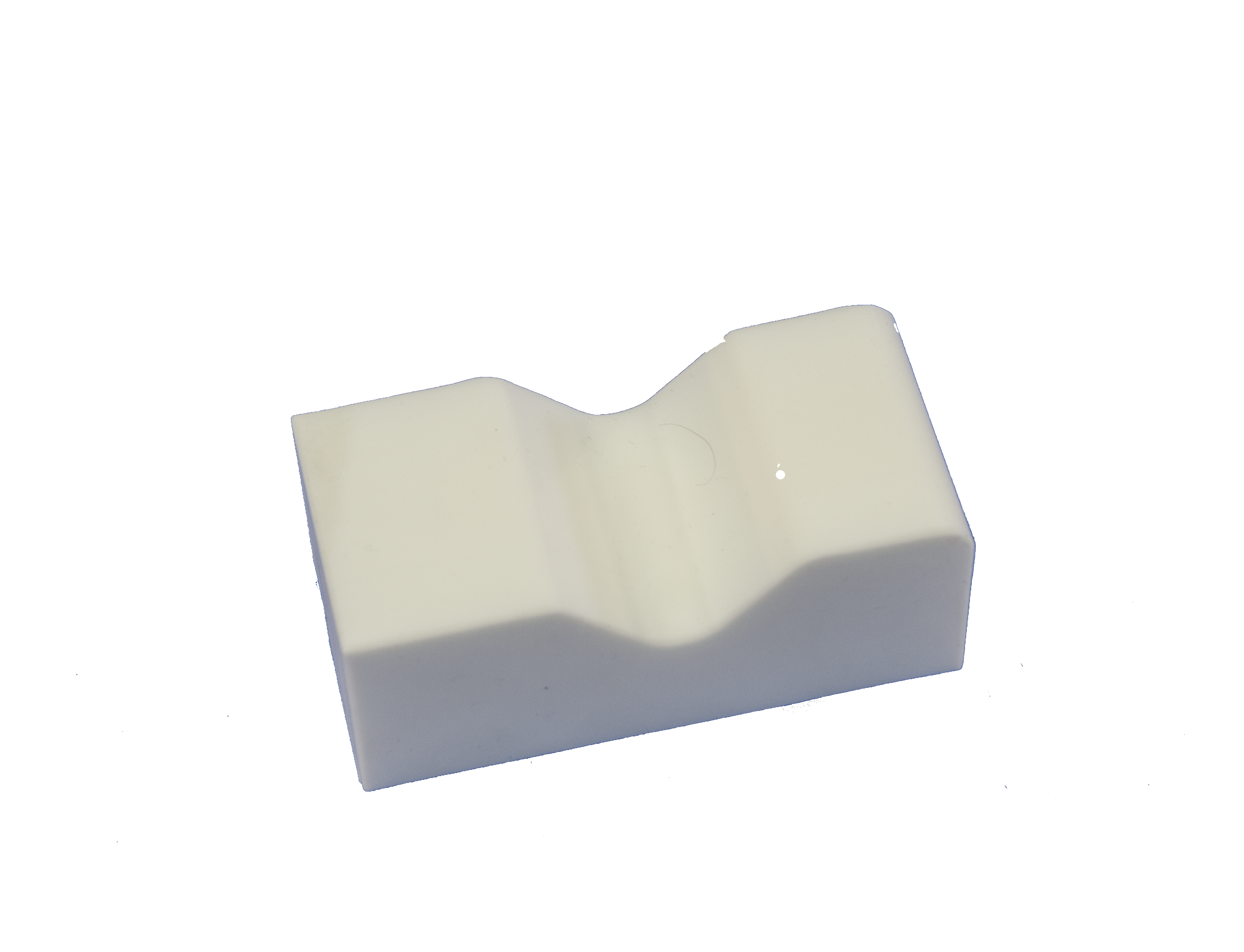

Series 500 Lower Jaw Size Ranges (One Jaw)

 Range Conductor Size Part #

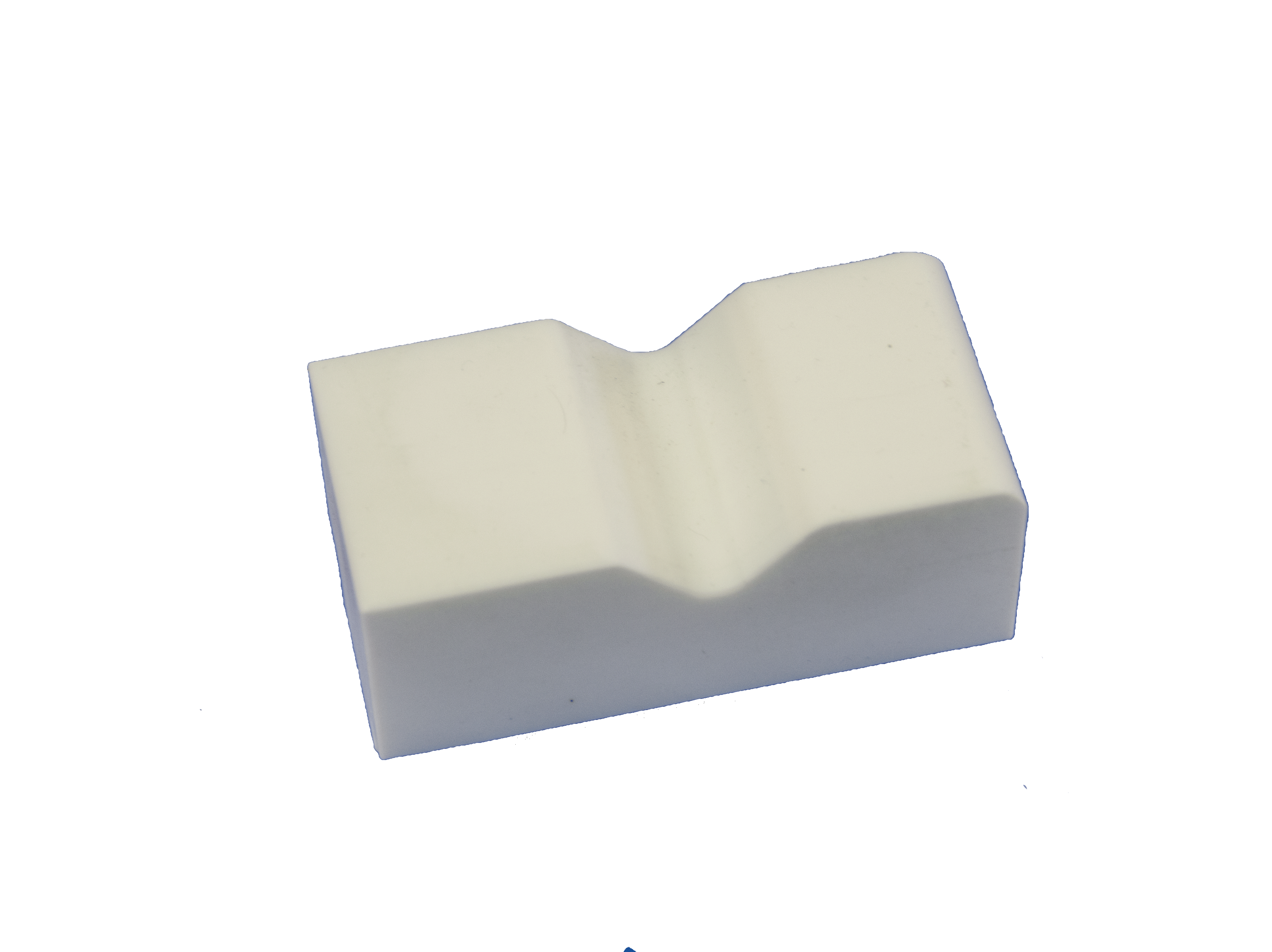

Range "A" 0.50 inch [12.7 mm] [126.68 mm²] to 0.75 inch [19.05 mm] [285.02 mm²] M542-A
Range "B" 0.75 inch [19.05 mm] [285.02 mm²] to 1.00 inch [25.4 mm] [506.71 mm²] M524-B

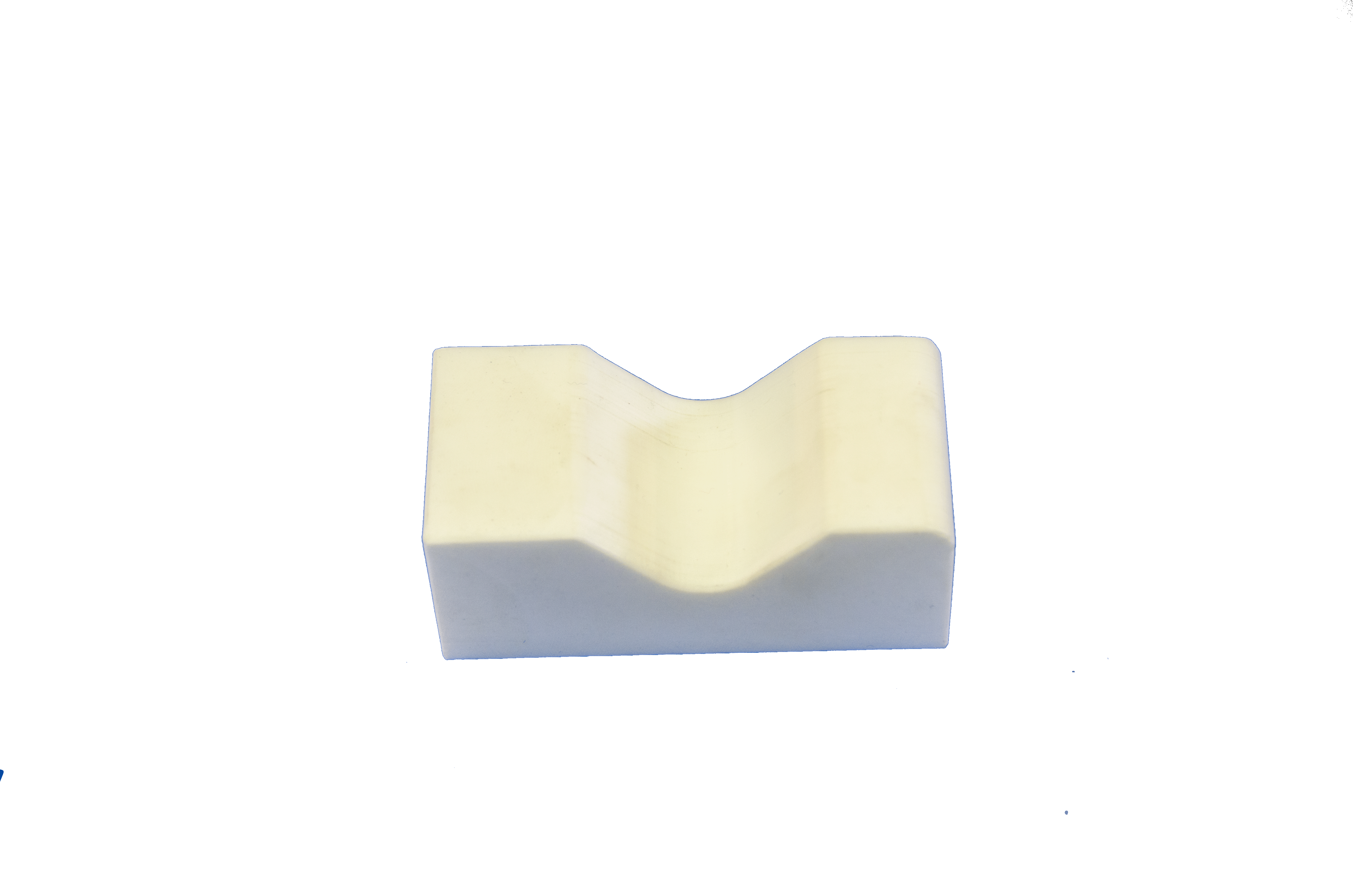

Range "C" 1.00 inch [25.4 mm] [506.71 mm²] to 1.25 inch [31.75 mm] [791.73 mm²] M524-C
Range "D" 1.25 inch [31.75 mm]  [791.73 mm²] to 1.50 inch [38.1 mm] [1140.09 mm²] M524-D Special Order
Range "E" 1.50 inch [ [38.1 mm] [1140.09 mm²] to 1.75 inch [44.45 mm]  [1551.79 mm²] M524-E Special Order
Range "F" 1.75 inch [44.45 mm] [1551.79 mm²] to 2.00 inch [50.8 mm] [2026.83 mm²] M524-F Special Order

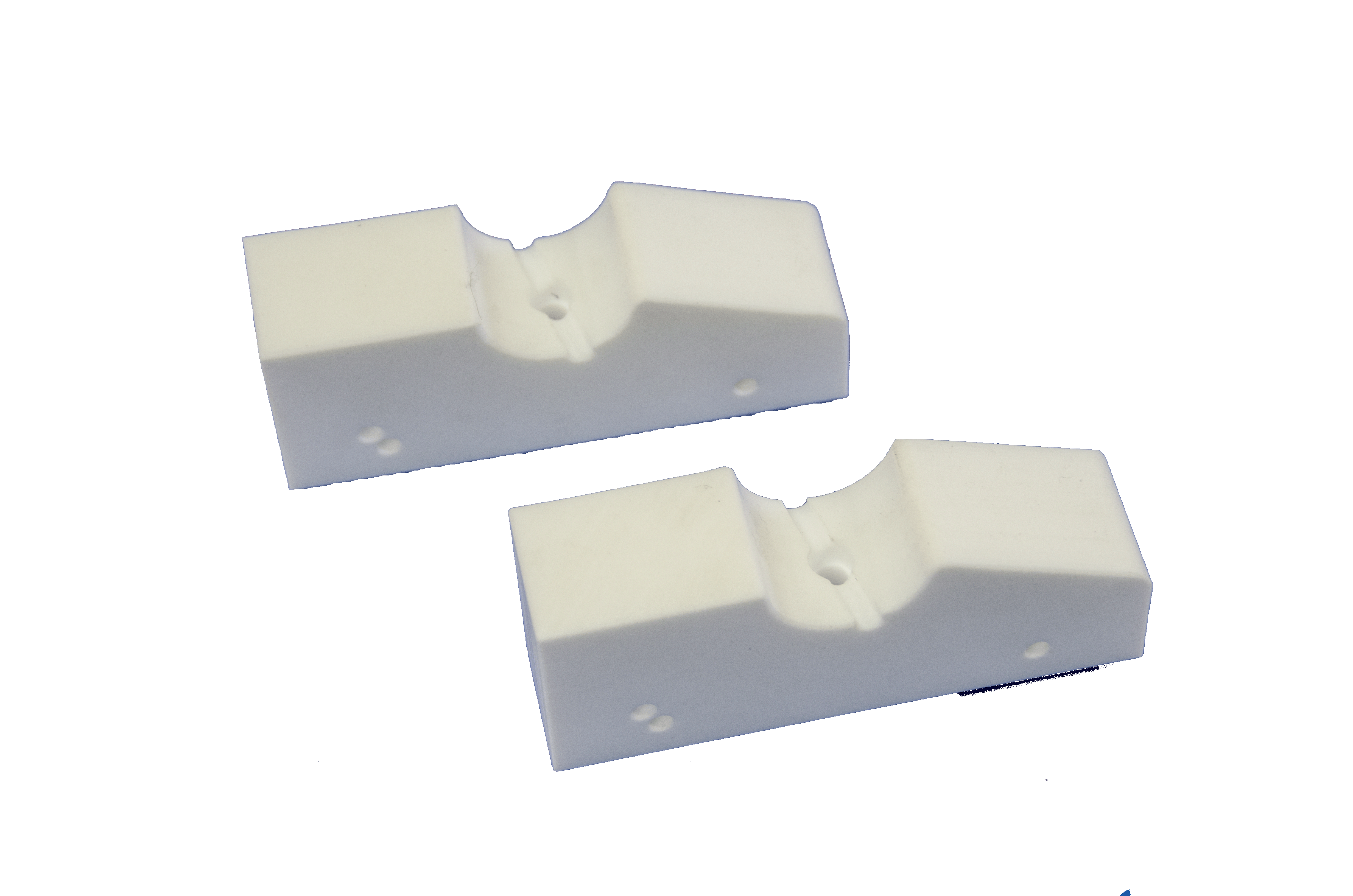

Series 500 Upper Jaw Size Ranges (Two Jaw)

Range Conductor Size Part # Part #
    Right left

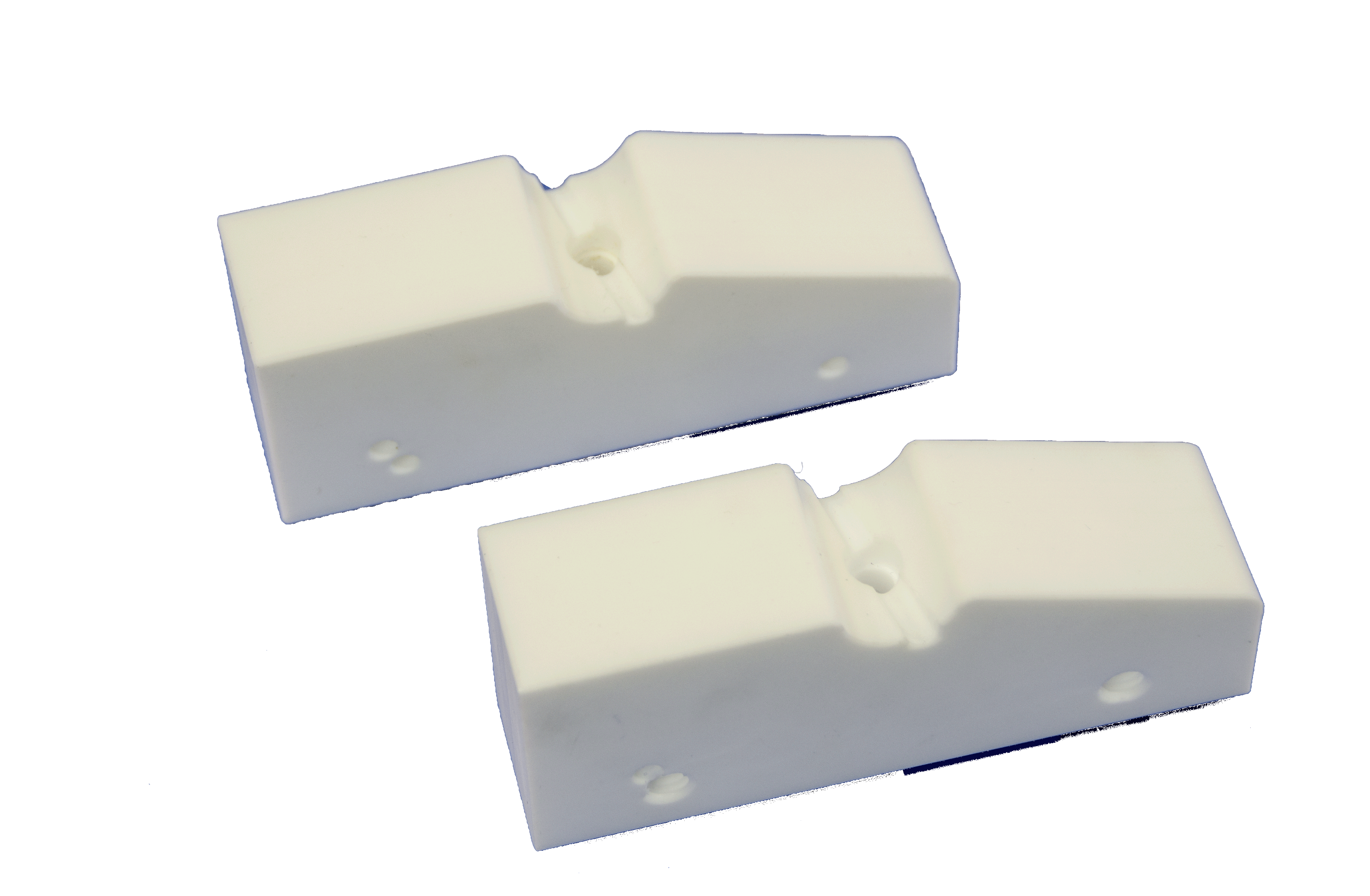

Range "A" 0.50 inch - 0.75 inch[12.7 mm] 126.68 mm² [19.05 mm] 285.02 mm² M540R-A M540 L-A
Range "B" 0.75 inch - 1.00 inch[19.05 mm] 285.02 mm² [25.4 mm] 506.71 mm²
 M540 R-B M540 L-B

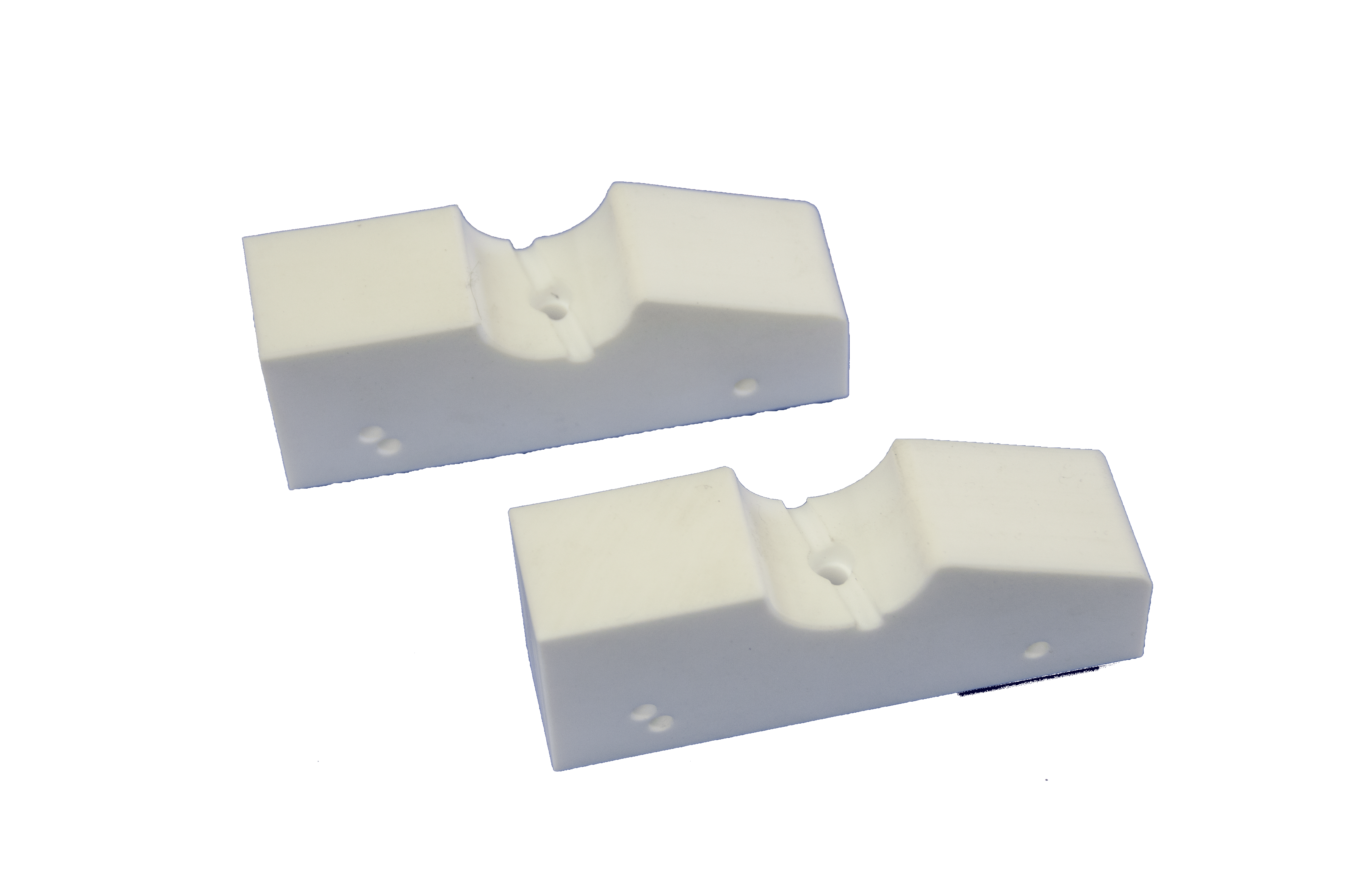

Range "C" 1.00 inch - 1.25 inch[25.4 mm] 506.71 mm² [31.75 mm] 791.73 mm² M540 R-C M540 L-C
Range "D" 1.25 inch - 1.50 inch[31.75 mm] 791.73 mm² [38.1 mm] 1140.09 mm² M540 R-D M540 L-D Special Order
Range "E" 1.50 inch - 1.75 inch[38.1 mm] 1140.09 mm² [44.45 mm]  1551.79 mm² M540 R-E M540 L-E Special Order
Range "F" 1.75 inch - 2.00 inch[44.45 mm]1551.79 mm² [50.8 mm] 2026.83 mm² M540 R-F M540 L-F Special Order

Series 500 Low Threshold Current Power Supply  LTPS - 500 Accessories

Threshold Current Alternatives are the following: Part #
26 amperes, 625 ampere rating M-5XX
35 amperes, 833 ampere rating M-5XX
53 amperes, 1250 ampere rating M-5XX
