DISTRIBUTION LINE MONITORING PRODUCTS [DSTR HARDWARE]

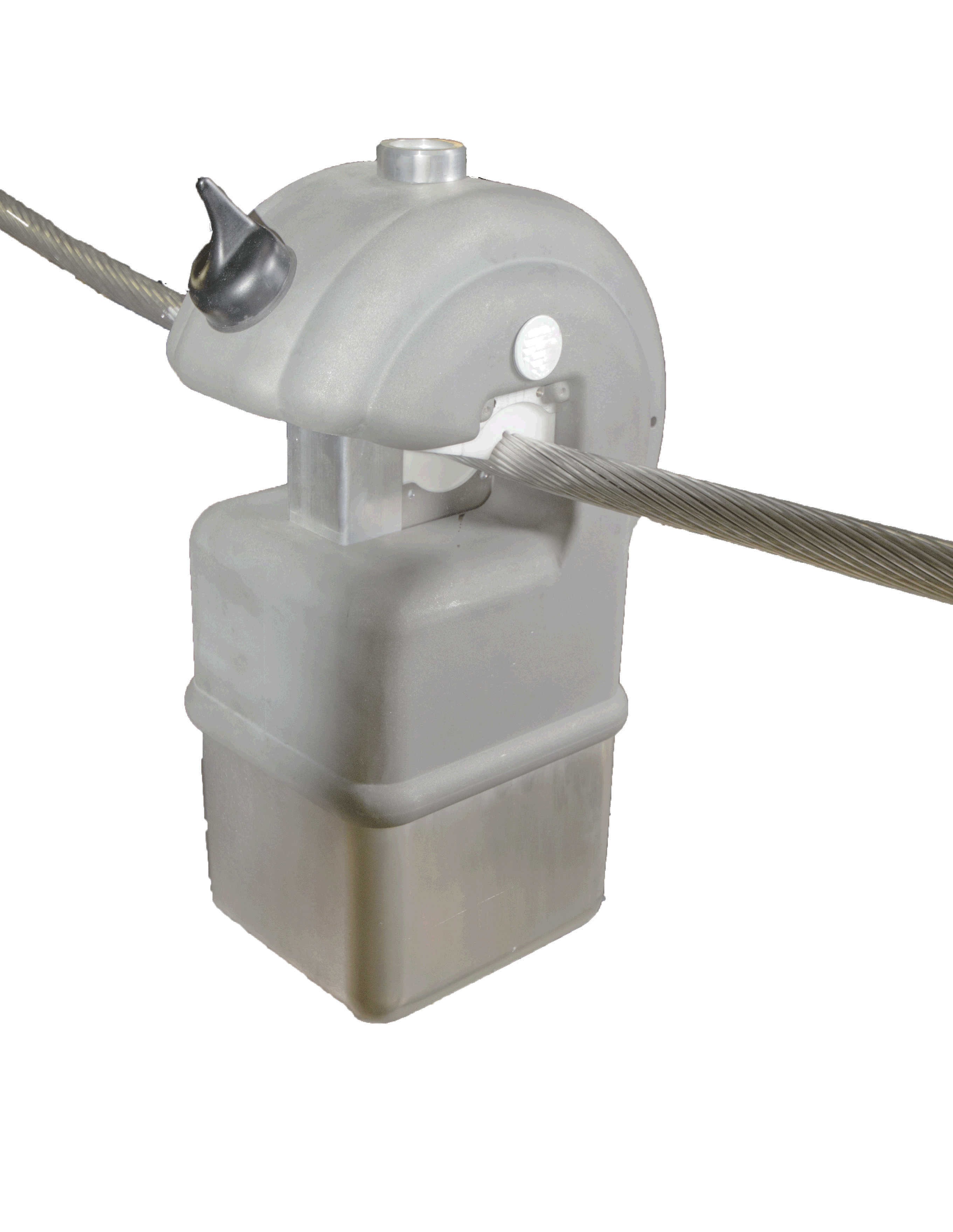

Line Mounted Self-Powered Overhead Electric Power Distribution Circuit Monitoring Units

PART	Part #
Series 600 Basic - 10 parameters	600
(1) Conductor Temperature (2) Ambient Temperature (3) Total Solar Radiation (4) Relative Humidity (5) Barometric Pressure (6) Effective Wind Velocity (7) True RMS Line Current & Waveforms (8) Fault Current & Waveforms (9) Fault Current Direction (10) Lightning Stroke Current & Waveforms Radio Transmitter/Receiver Options: GE MDS entra-net 900 MHz or Ubiquiti M-2, 2.4 GHz (Wi-Fi) DNP3 Protocol GPS Location Transfer Trip

PART

Part #

Series 600 Basic - 10 parameters

600

(1) Conductor Temperature
(2) Ambient Temperature
(3) Total Solar Radiation
(4) Relative Humidity
(5) Barometric Pressure
(6) Effective Wind Velocity
(7) True RMS Line Current & Waveforms
(8) Fault Current & Waveforms
(9) Fault Current Direction
(10) Lightning Stroke Current & Waveforms
Radio Transmitter/Receiver Options: GE MDS entra-net 900 MHz or Ubiquiti M-2, 2.4 GHz (Wi-Fi)
DNP3 Protocol
GPS Location
Transfer Trip

PART	Part #
Series 600 Option A - 14 Parameters	600A
(1) Conductor Temperature (2) Ambient Temperature (3) Total Solar Radiation (4) Relative Humidity (5) Barometric Pressure (6) Effective Wind Velocity (7) True RMS Line Current & Waveforms (8) Fault Current & Waveforms (9) Fault Current Direction (10) Lightning Stroke Current & Waveforms (11) Line Sag & Clearance (12) Rain Sensor (13) Ice Thickness (14) Real Time Thermal Ratings (RTTRS) Radio Transmitter/Receiver Options: GE MDS entra-net 900 MHz or Ubiquiti M-2, 2.4 GHz (Wi-Fi) DNP3 Protocol GPS Location Transfer Trip ** Production prototype Units only

PART

Part #

Series 600 Option A - 14 Parameters

600A

(1) Conductor Temperature
(2) Ambient Temperature
(3) Total Solar Radiation
(4) Relative Humidity
(5) Barometric Pressure
(6) Effective Wind Velocity
(7) True RMS Line Current & Waveforms
(8) Fault Current & Waveforms
(9) Fault Current Direction
(10) Lightning Stroke Current & Waveforms
(11) Line Sag & Clearance
(12) Rain Sensor**
(13) Ice Thickness**
(14) Real Time Thermal Ratings (RTTRS)
Radio Transmitter/Receiver Options: GE MDS entra-net 900 MHz or Ubiquiti M-2, 2.4 GHz (Wi-Fi)
DNP3 Protocol
GPS Location
Transfer Trip

** Production prototype Units only

PART	Part #
Series 600 Option B - 23 Parameters	600B
(1) Conductor Temperature (2) Ambient Temperature (3) Total Solar Radiation (4) Relative Humidity (5) Barometric Pressure (6) Effective Wind Velocity (7) True RMS Line Current & Waveforms (8) Fault Current & Waveforms (9) Fault Current Direction (10) Lightning Stroke Current & Waveforms (11) Line Sag & Clearance (12) Rain Sensor (13) Ice Thickness (14) Real Time Thermal Ratings (RTTRS) (15)True RMS Line Voltage & Waveforms (16) Fault Voltage & Waveforms (17) Lightning Stroke Voltage & Waveforms (18) Total Harmonic Current Distortion THDi (19) Total Harmonic Voltage Distortion THDv (20) Power Factor (21) kW (22) kVAr (23) kVA Radio Transmitter/Receiver Options: GE MDS entra-net 900 MHz or Ubiquiti M-2, 2.4 GHz (Wi-Fi) DNP3 Protocol GPS Location Transfer Trip ** Production prototype Units only

PART

Part #

Series 600 Option B - 23 Parameters

600B

(1) Conductor Temperature
(2) Ambient Temperature
(3) Total Solar Radiation
(4) Relative Humidity
(5) Barometric Pressure
(6) Effective Wind Velocity
(7) True RMS Line Current & Waveforms
(8) Fault Current & Waveforms
(9) Fault Current Direction
(10) Lightning Stroke Current & Waveforms
(11) Line Sag & Clearance
(12) Rain Sensor**
(13) Ice Thickness**
(14) Real Time Thermal Ratings (RTTRS)
(15)True RMS Line Voltage & Waveforms
(16) Fault Voltage & Waveforms
(17) Lightning Stroke Voltage & Waveforms
(18) Total Harmonic Current Distortion THDi
(19) Total Harmonic Voltage Distortion THDv
(20) Power Factor
(21) kW
(22) kVAr
(23) kVA
Radio Transmitter/Receiver Options: GE MDS entra-net 900 MHz or Ubiquiti M-2, 2.4 GHz (Wi-Fi)
DNP3 Protocol
GPS Location
Transfer Trip

** Production prototype Units only

Series 600 Sag Measuring and GPS Modules

PART	Part #

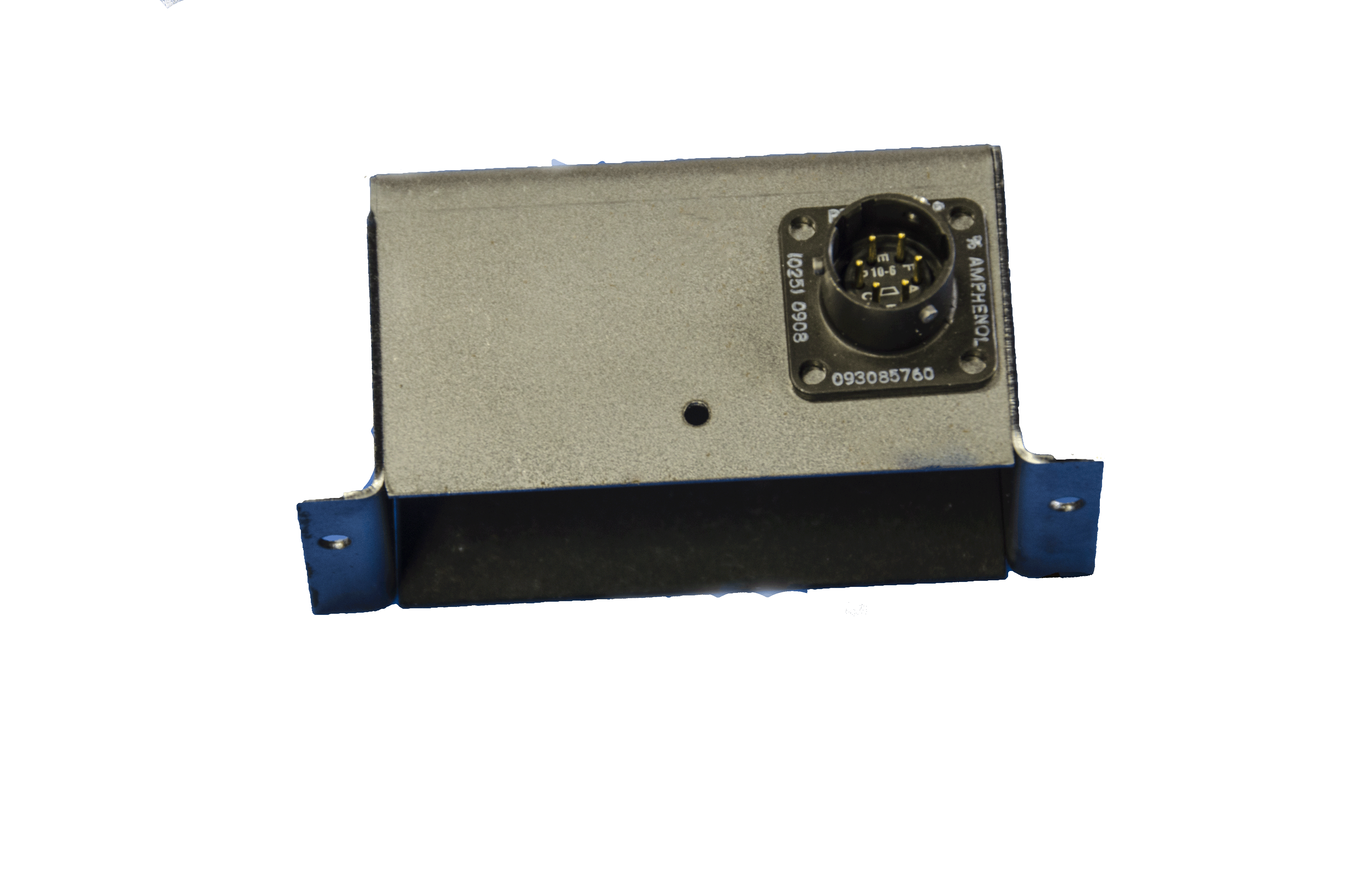

Sag Measuring Module	M660

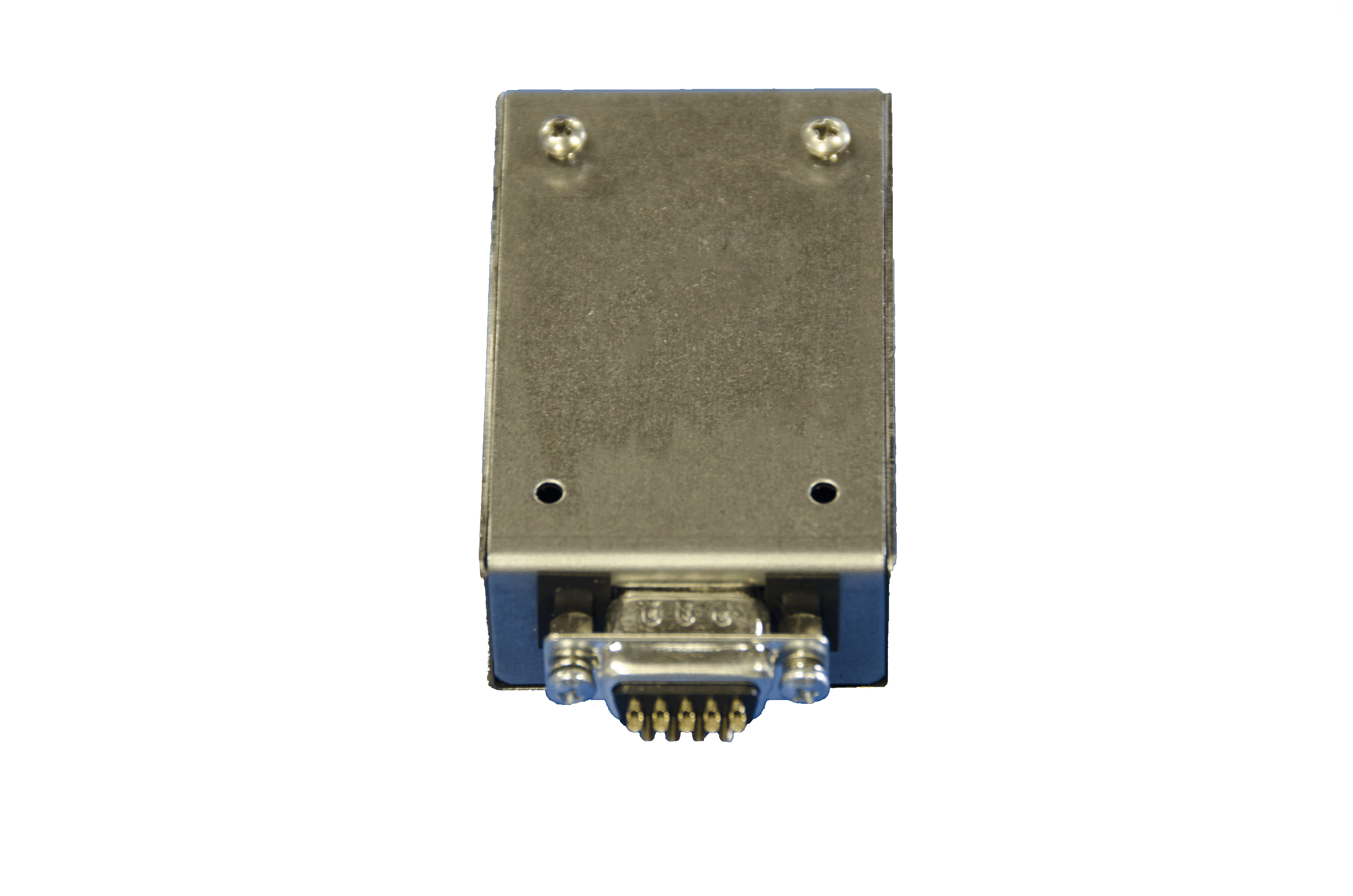

Global Positioning System (GPS) Module(Standard on All Units)	M665

DSTR Option B Voltage Measurement Assembly Alternatives

PART	Part #
Flexible Stirrup (Required for Solar Radiation Measurements)	M624-F	NOTE: Jumper, hot line clamps, inline fuse and surge block NOT included.
Ring Stirrup	M624-7	NOTE: Jumper, hot line clamps, inline fuse and surge block NOT included.}
Integrated Surge Block and Ring Stirrup	M624-8	NOTE: Jumper, hot line clamp and inline fuse NOT included.
Direct Connect (For Restricted Clearance Applications)	M624-9	NOTE: Jumper, hot line clamp, inline fuse and surge block NOT included.
Direct Connect to Bolted Lead on Surge Block	M624-10	NOTE: Jumper, hot line clamp, inline fuse and surge block NOT included.

DSTR Powernostics Software License

PART	Part #
Series 600 Powernostics Software Customer License	D14.1
Series 600 Powernostics Software Update	Dxx.x

Series 600 Conductor Cleaning Parts

PART	Part #

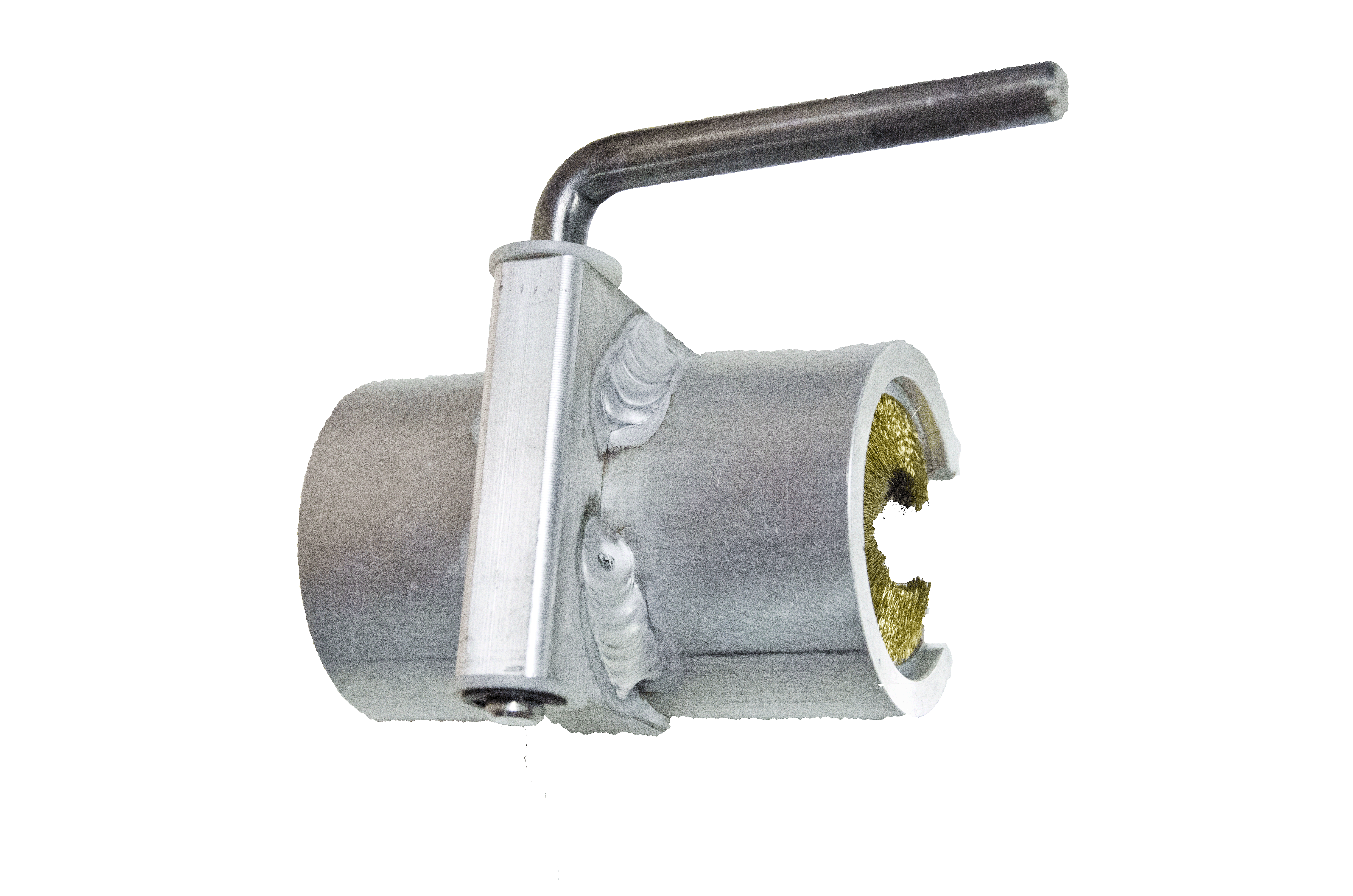

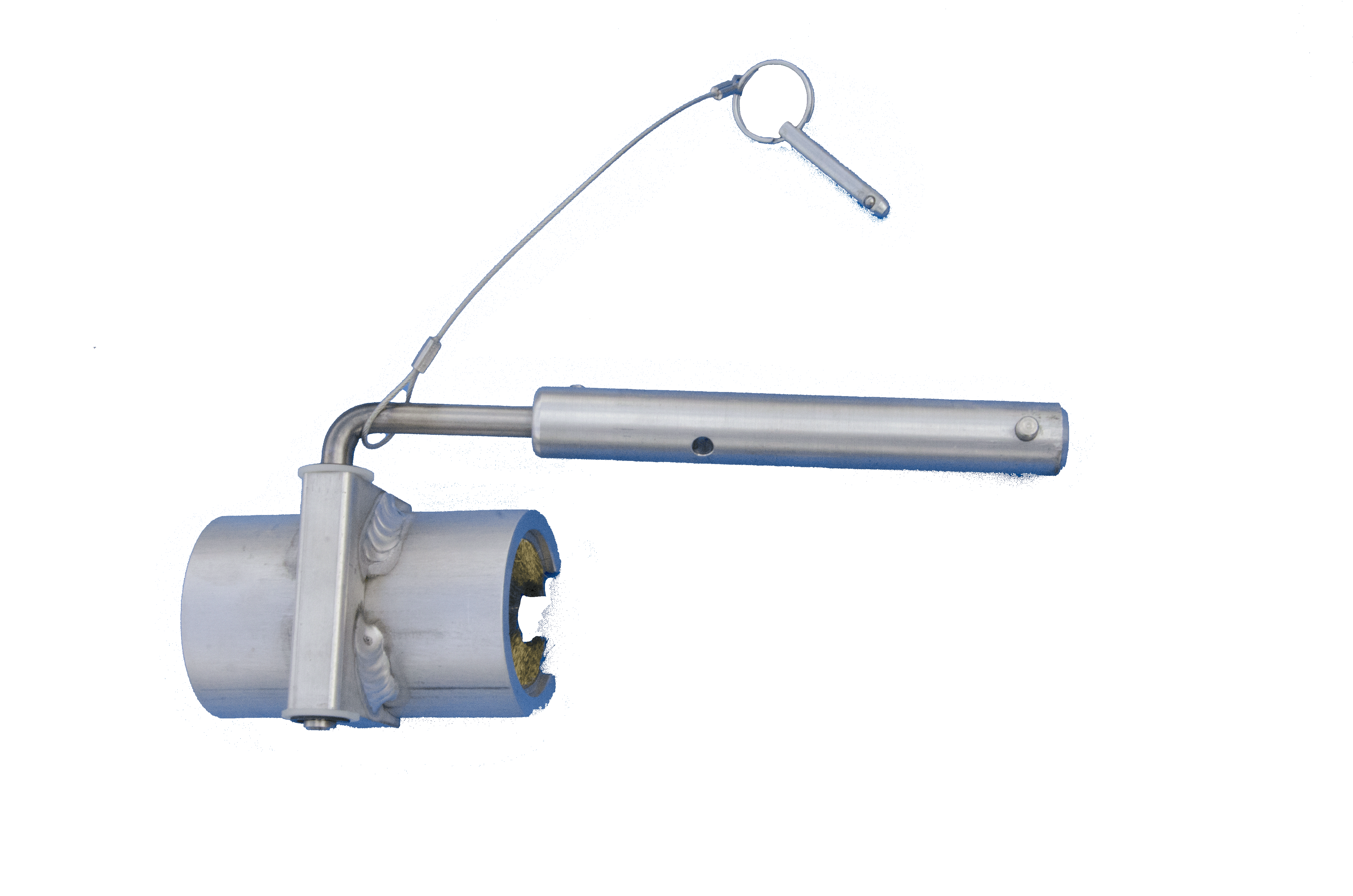

Series 600 Cleaning Brush Complete Assembly (Fits #6 AWG Copper Conductor up to 1000 kc mil Aluminum Conductor)	M669-7
Series 600 Conductor Cleaning Brush	M669

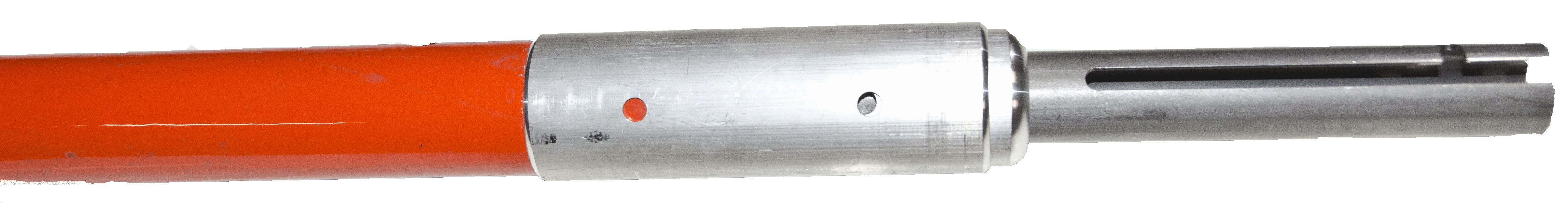

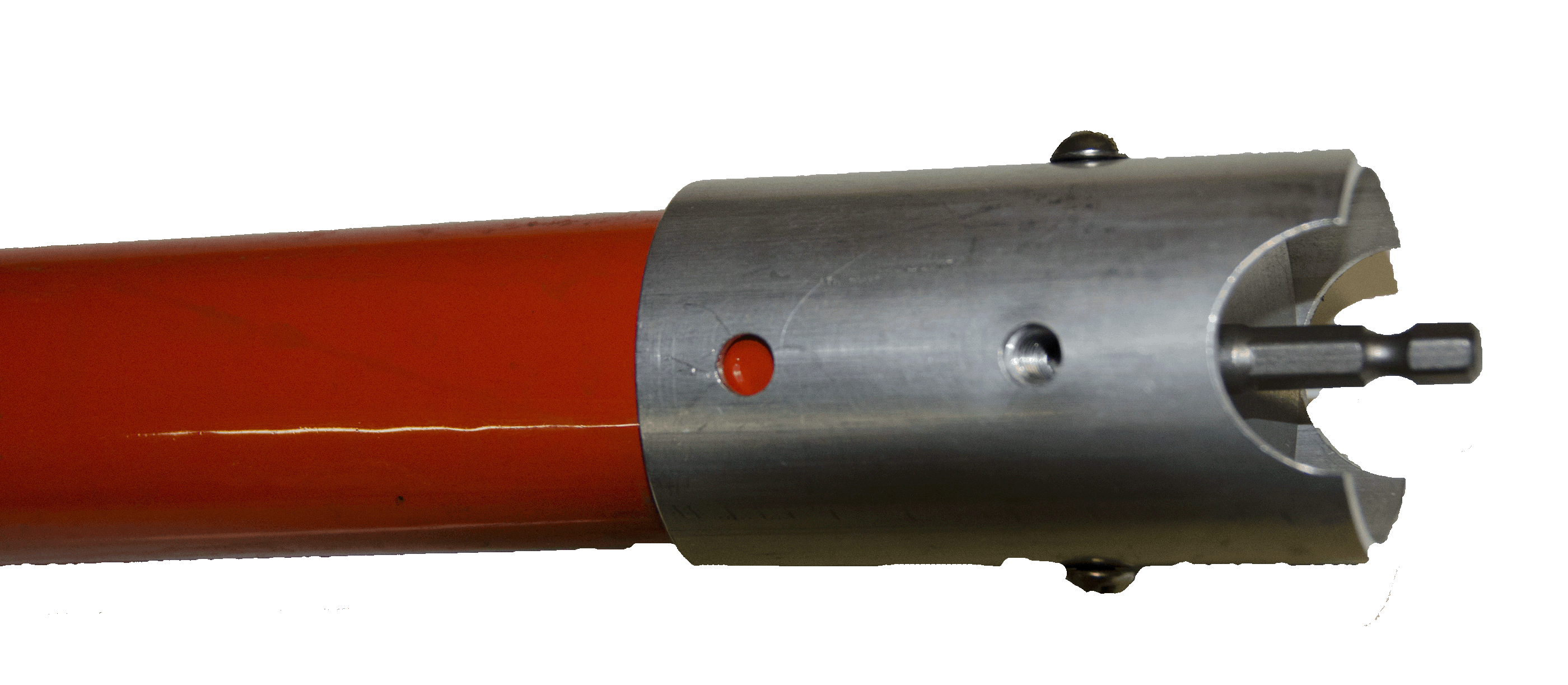

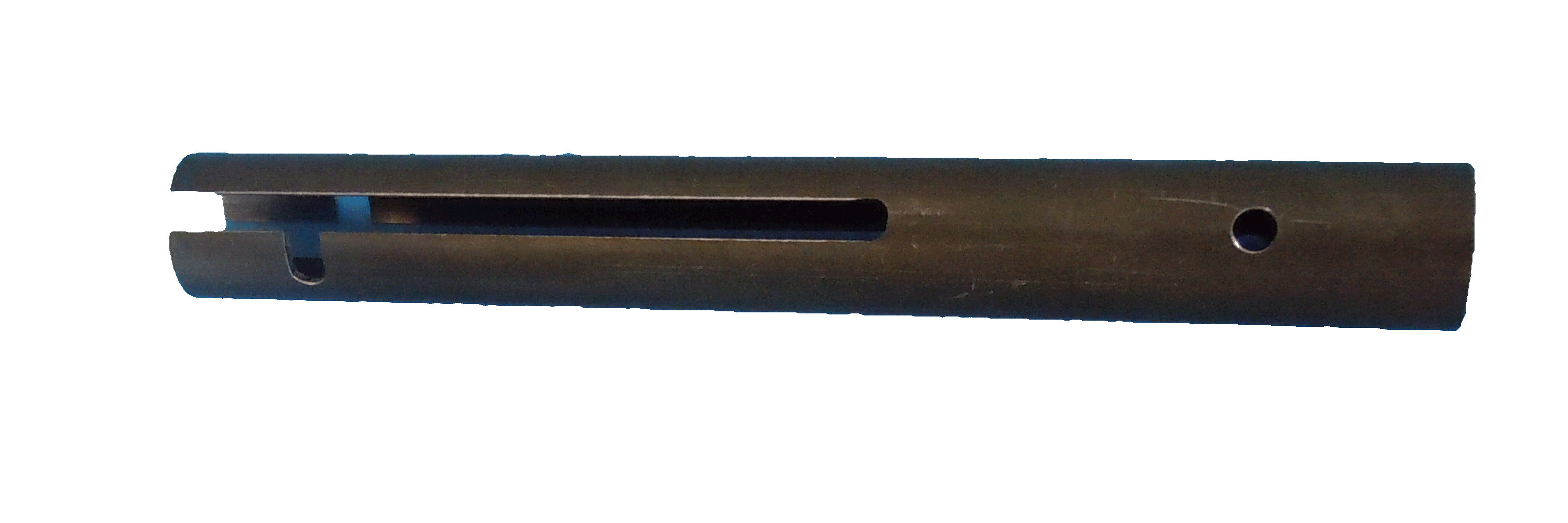

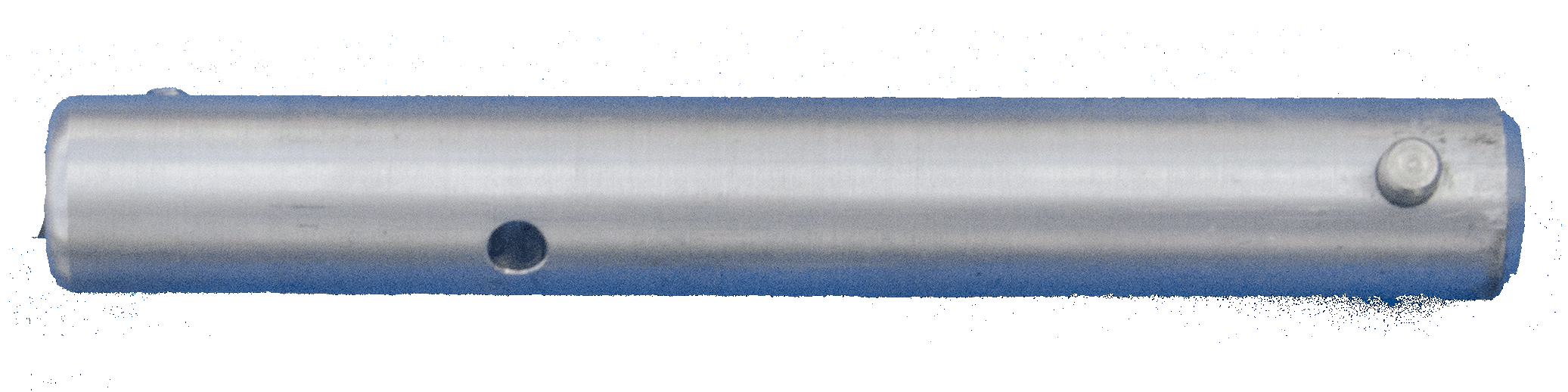

Series 600 Hotstick Driver Adapter	M669-6
Series 600 Hotstick Driver	M638
Series 600 Hotstick Quick Driver	M641

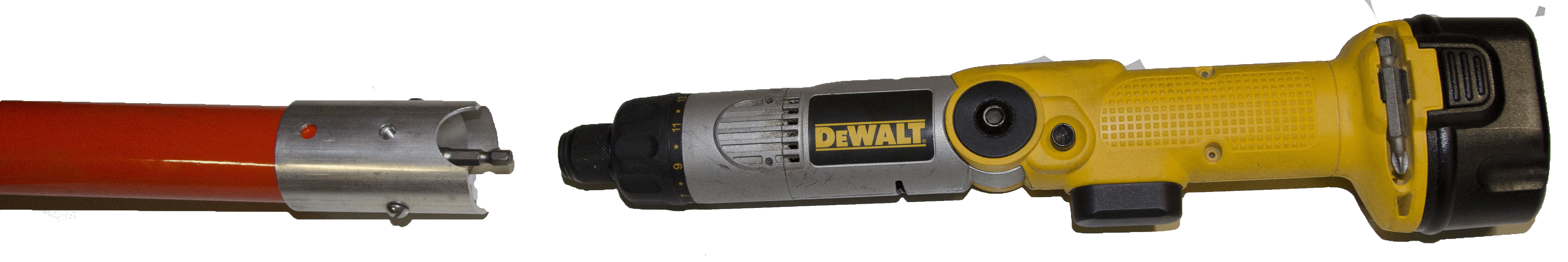

Series 600 Hotstick Quick Driver for Battery Powered Drill (Drill not included)	M519A

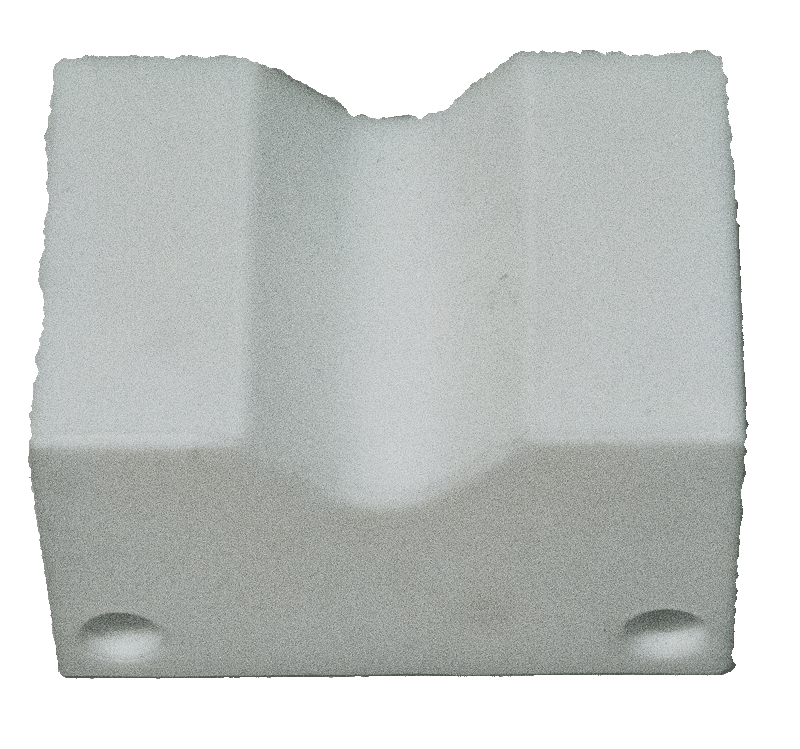

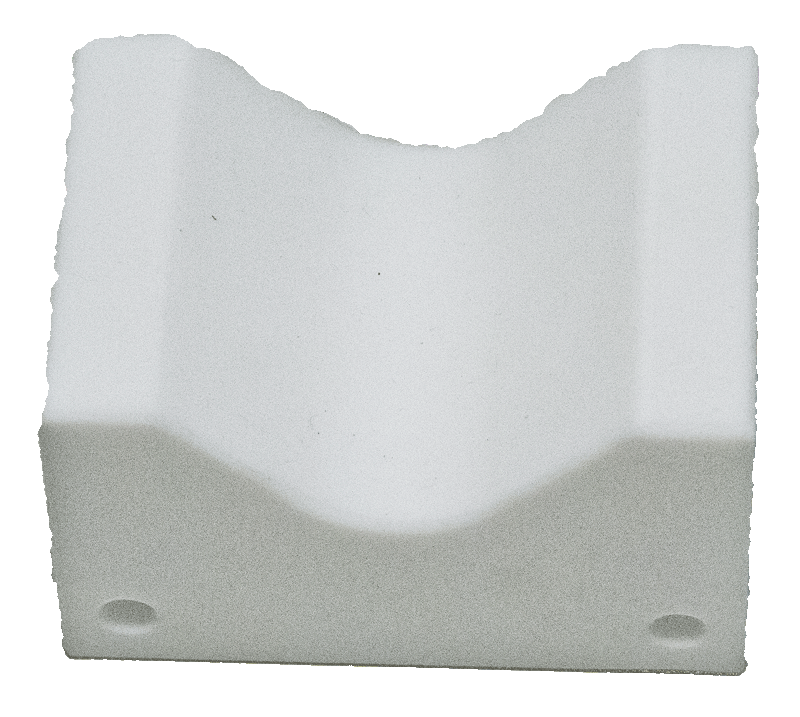

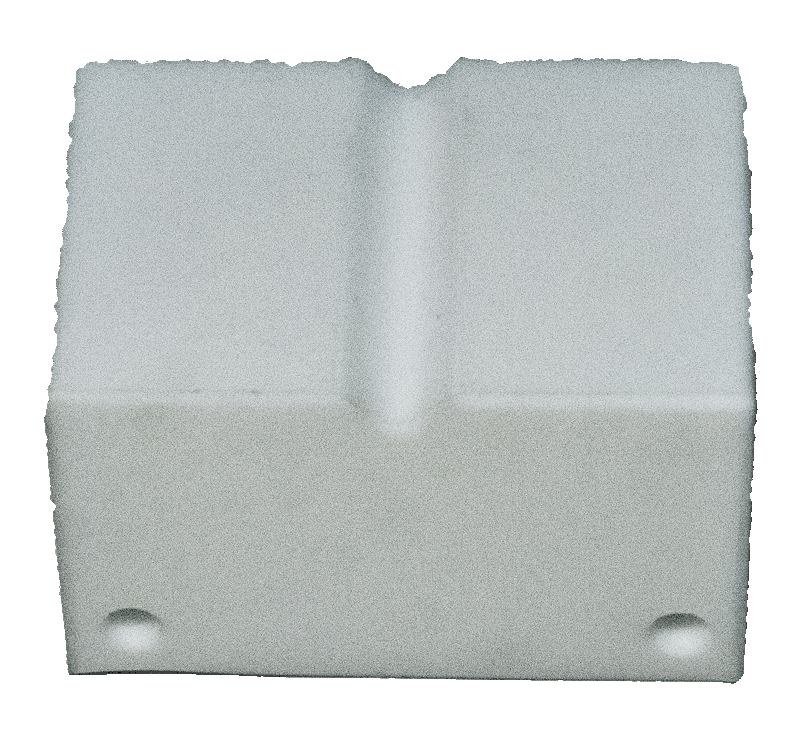

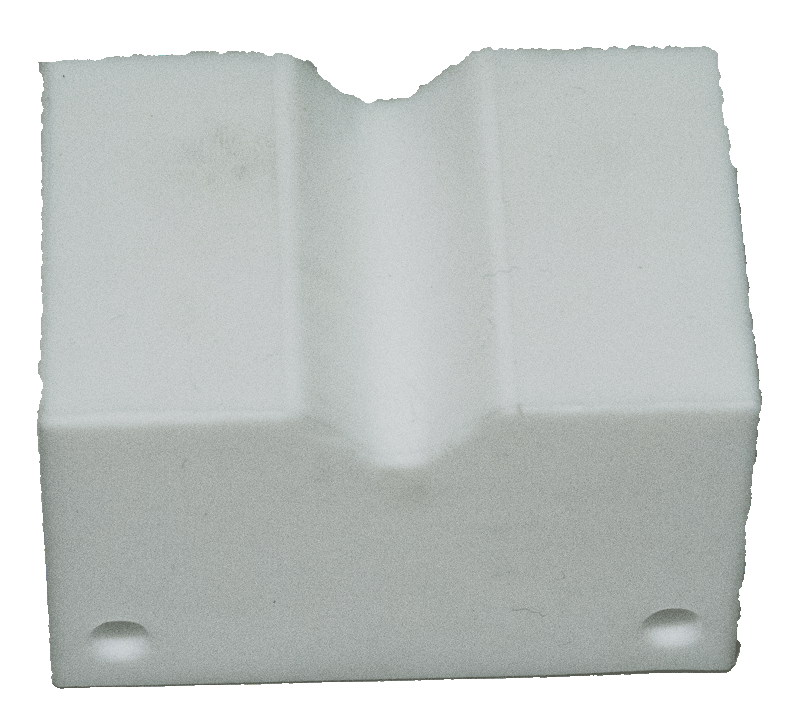

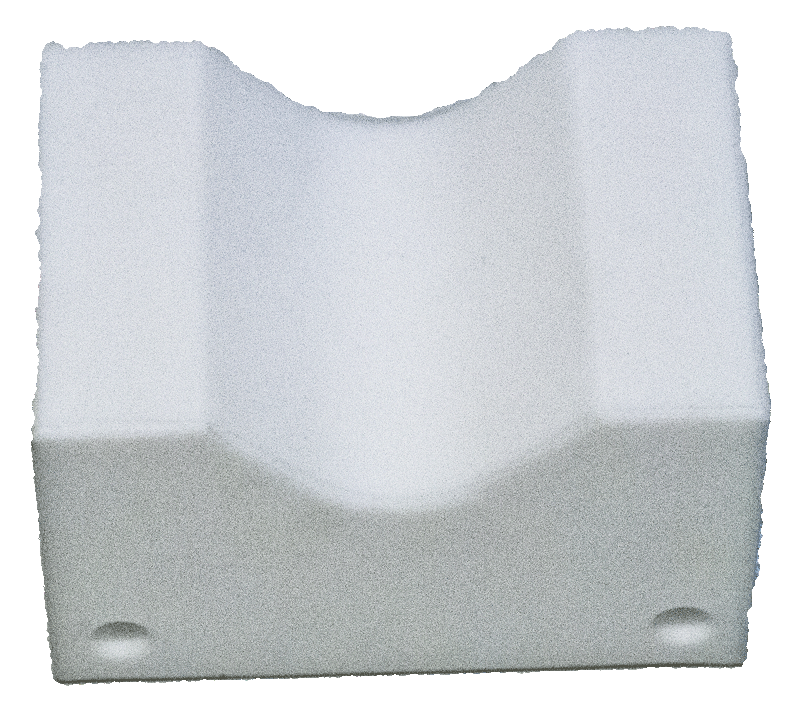

Series 600 Lower Jaw Size Ranges (One Jaw)

Range	Conductor Size	Part #
Range "0"	#6 cu (0.162 in.) [4.1 mm] [13.20 mm²] to #2 cu (0.258 in.) [6.55 mm] [33.69 mm²]	M635-0
Range "1"	#2ACSR 6/1 (0.316 in.) [8.03 mm] [50.64 mm²] to 3/0 Al (0.464 in.) [11.79 mm] [109.17 mm²]	M635-1
Range "2"	3/0 ACSR 6/1 (0.502 in.)[12.75 mm] [127.67 mm²]to 350 Al (0.679 in.) [17.25 mm] [233.70 mm²]	M635-2
Range "3"	500 cu (0.813 in.)[20.65 mm] [334.91 mm²] to 636 Al 37 (0.918 in.) [23.32 mm] [427.12 mm²]	M635-3
Range "4"	636 Al 37 (0.918 in.) [23.32 mm] [427.12 mm²] to 954 ACSR 45/7 (1.165) [29.59 mm] [687.67 mm²]	M635-4

Range	Conductor Size	Part #	Part #
		Right	Left
Range "0"	#6 cu (0.162 in.) [4.11 mm] 13.20 mm² to #2 cu (0.258 in.) [6.55 mm] 33.69 mm²	M636 R-0	M636 L-0
Range "1"	#2ACSR 6/1 (0.316 in.) [8.03 mm] 50.64 mm² to 3/0 Al (0.464 in.) [11.79 mm] 109.17 mm²	M636 R-1	M636 L-1
Range "2"	3/0 ACSR 6/1 (0.502 in.)[12.75 mm] 127.67 mm² to 350 Al (0.679 in.) [17.25 mm] 233.70 mm²	M636 R-2	M636 L-2
Range "3"	500 cu (0.813 in.)[20.65 mm] 334.91 mm² to 636 Al 37 (0.918in.) [23.32 mm] 427.12 mm²	M636 R-3	M636 L-3
Range "4"	636 Al 37 (0.918 in.) [23.32 mm] 427.12 mm² to 954 ACSR 45/7 (1.165in.) [29.59 mm] 687.67 mm²	M636 R-4	M636 L-4

PART	Part #

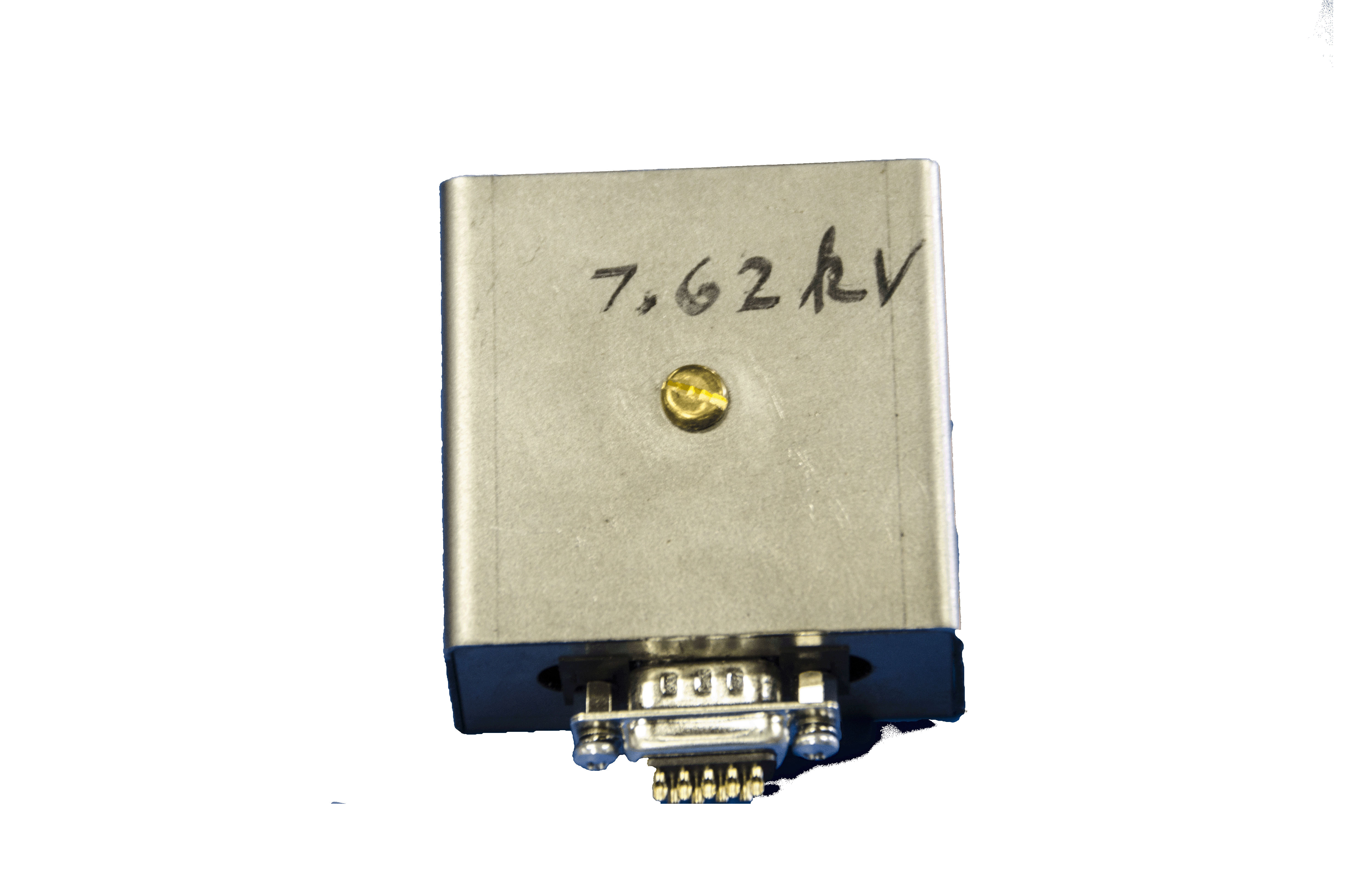

7.620 kV Voltage Sensing Module	E600-1
4.800 kV Voltage Sensing Module	E600-2
Surge Block	M606A-1

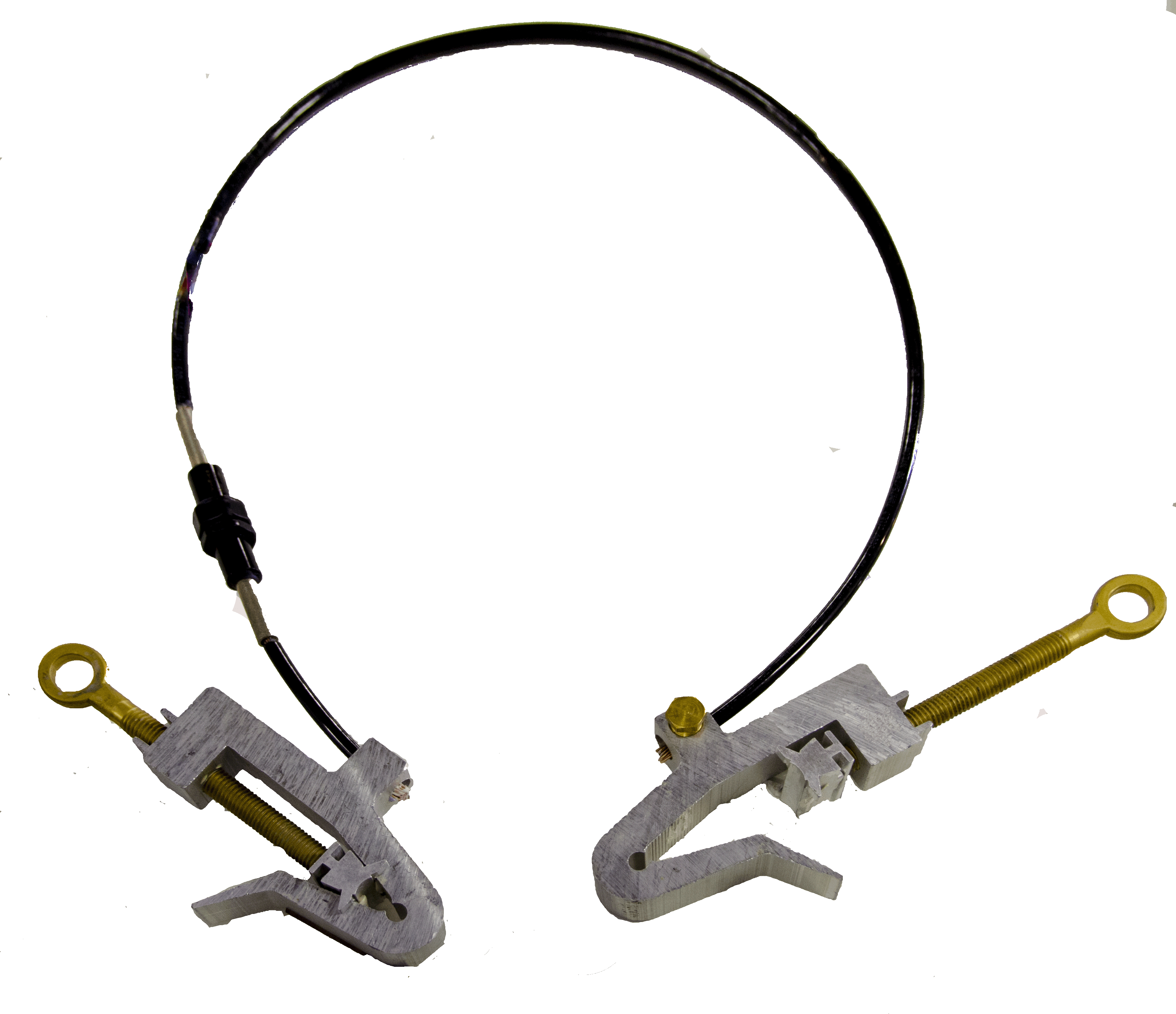

Fused Jumper for Surge Block Phase A to Phase B 40 inches	M623-6AB
Fused Jumper for Surge Block; Phase B to Phase C 64 inches	M623-6BC
Lightning Arrestor - Supplied by Customer	---------

PART	Part #
GE entraNET 900 Transmitter-Receiver, 900 MHz, DSTR Remote	GE-900
GE entraNET 900 Transmitter-Receiver, 900 MHz, DSTR Local Remote	GE-900L

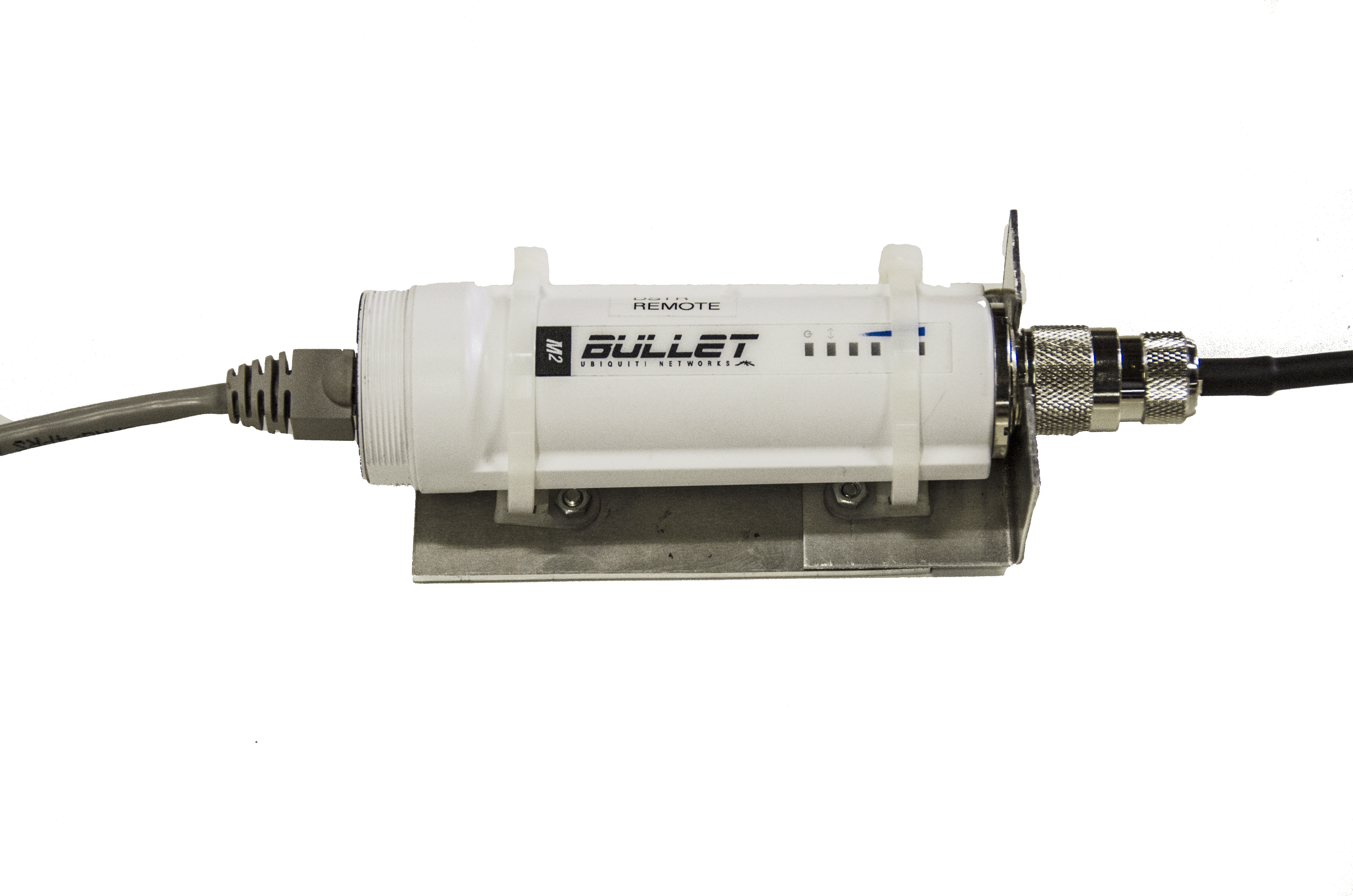

Ubiquiti M-2 Bullet Transmitter-Receiver, 2.4 GHz (Wi-Fi) DSTR Remote;	UM2-2.4

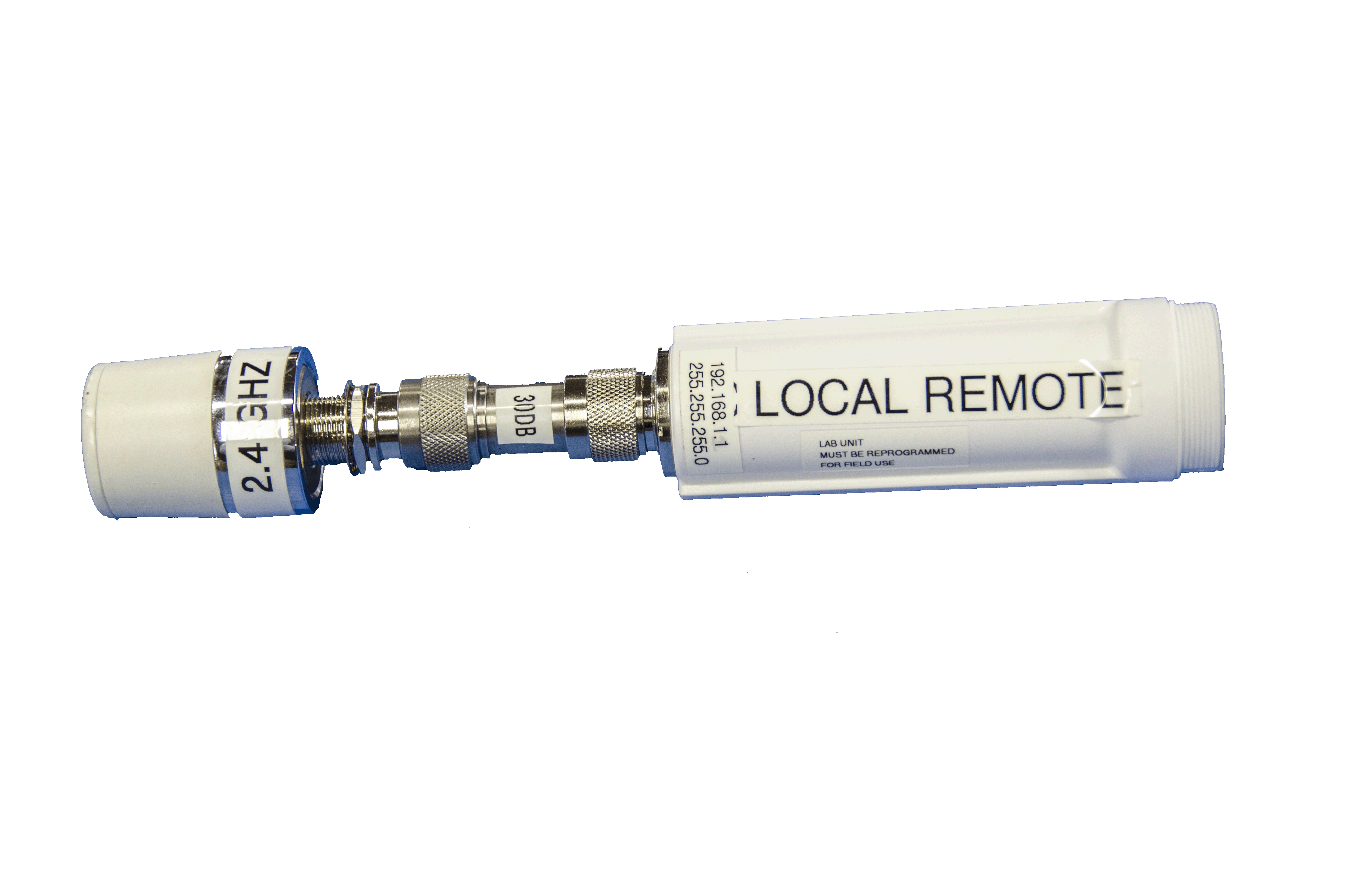

Ubiquiti M-2 Bullet Transmitter-Receiver, 2.4 GHz (Wi-Fi) DSTR Local Remote	UM2-2.4L

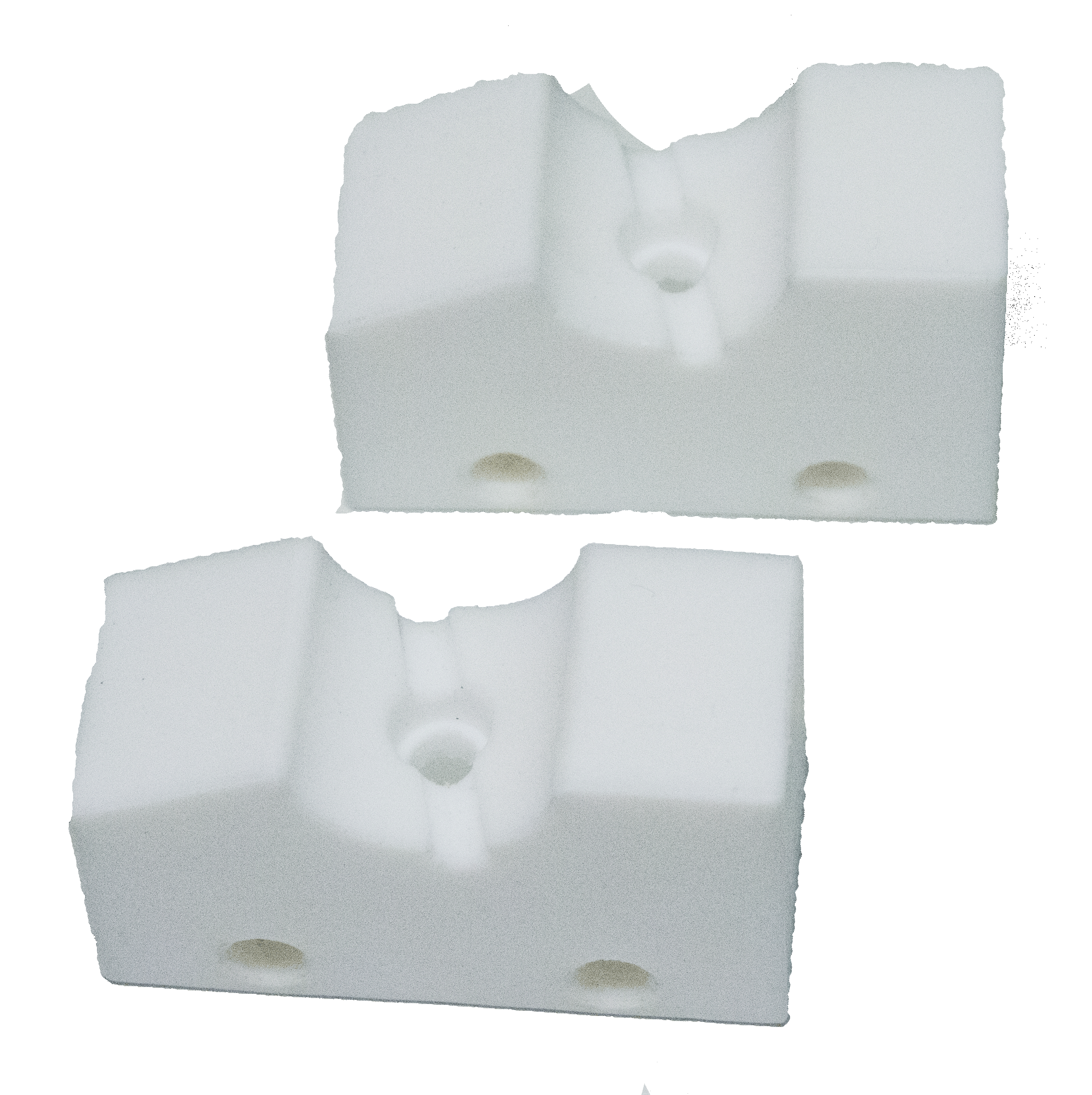

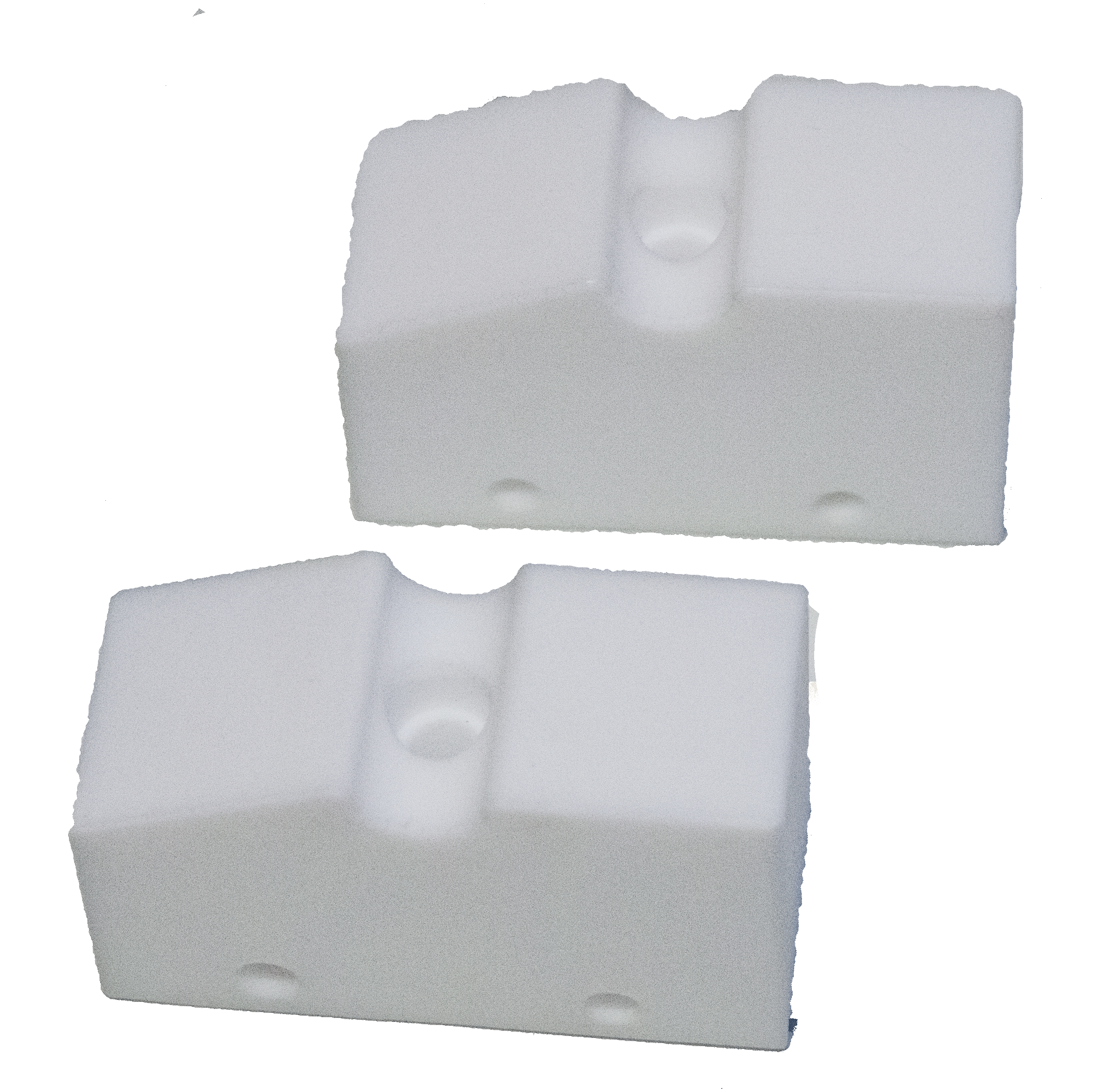

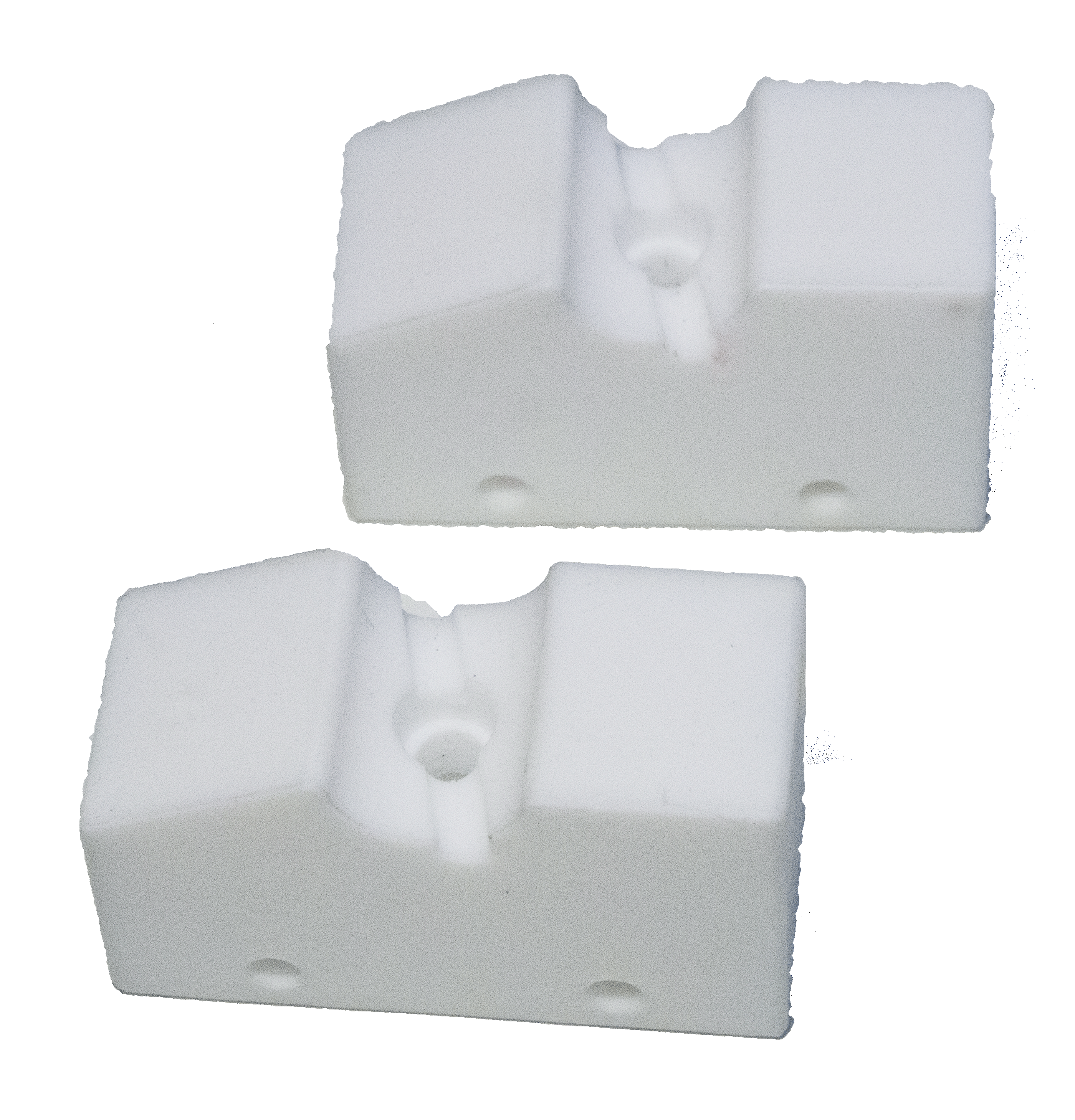

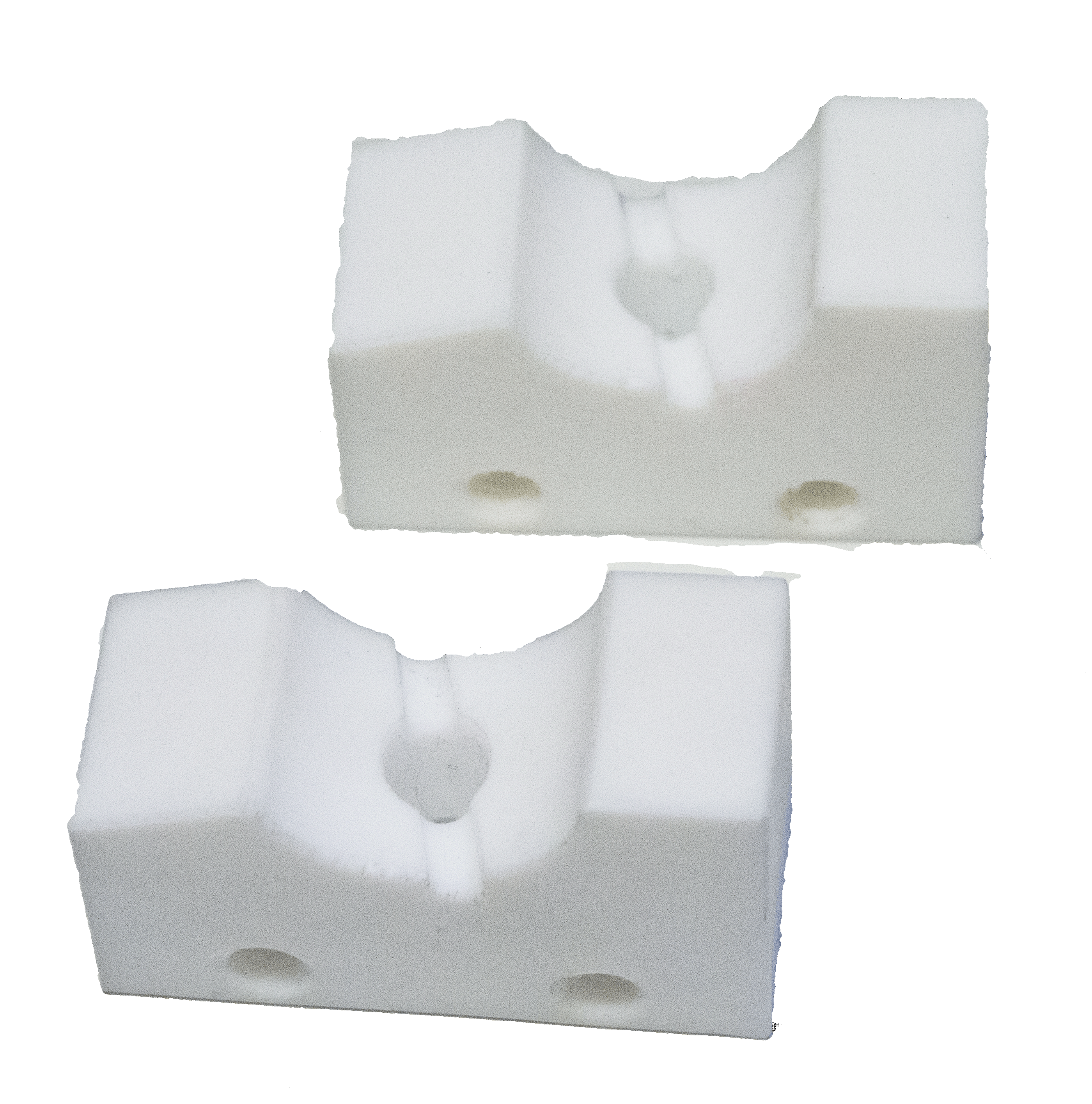

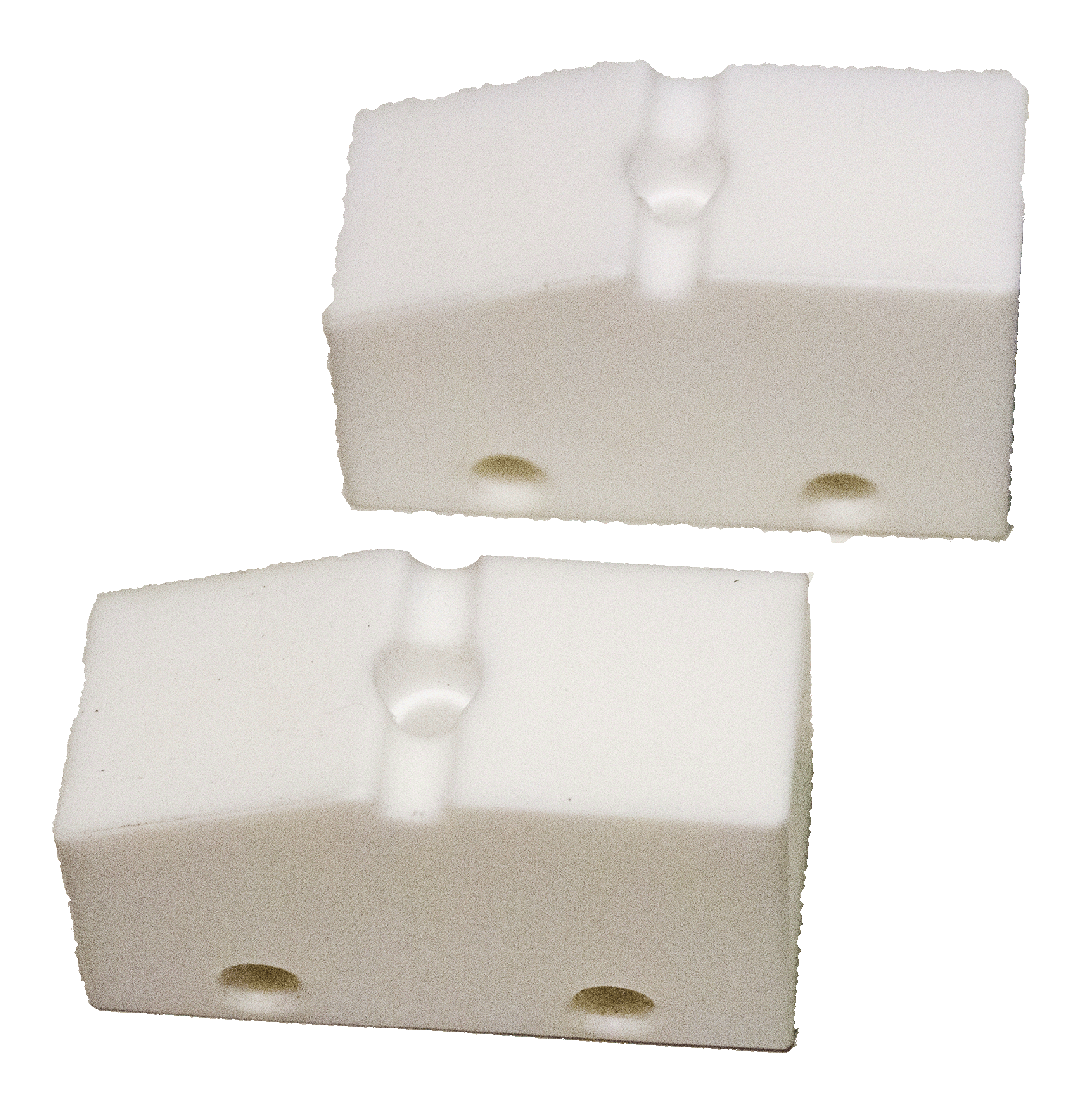

Series 600 Upper Jaw Size Ranges (Two Jaws)

Range Conductor Size Part # Part #

Right Left

Range "0" #6 cu (0.162 in.) [4.11 mm] 13.20 mm² to #2 cu (0.258 in.) [6.55 mm] 33.69 mm² M636 R-0 M636 L-0

Range "1" #2ACSR 6/1 (0.316 in.) [8.03 mm] 50.64 mm² to 3/0 Al (0.464 in.) [11.79 mm] 109.17 mm² M636 R-1 M636 L-1

Range "2" 3/0 ACSR 6/1 (0.502 in.)[12.75 mm] 127.67 mm² to 350 Al (0.679 in.) [17.25 mm] 233.70 mm² M636 R-2 M636 L-2
Range "3" 500 cu (0.813 in.)[20.65 mm] 334.91 mm² to 636 Al 37 (0.918in.) [23.32 mm] 427.12 mm² M636 R-3 M636 L-3

Range "4" 636 Al 37 (0.918 in.) [23.32 mm] 427.12 mm² to 954 ACSR 45/7 (1.165in.) [29.59 mm] 687.67 mm² M636 R-4 M636 L-4

Voltage Measuring Modules and Assemblies

PART Part #

7.620 kV Voltage Sensing Module E600-1

4.800 kV Voltage Sensing Module E600-2

Surge Block M606A-1

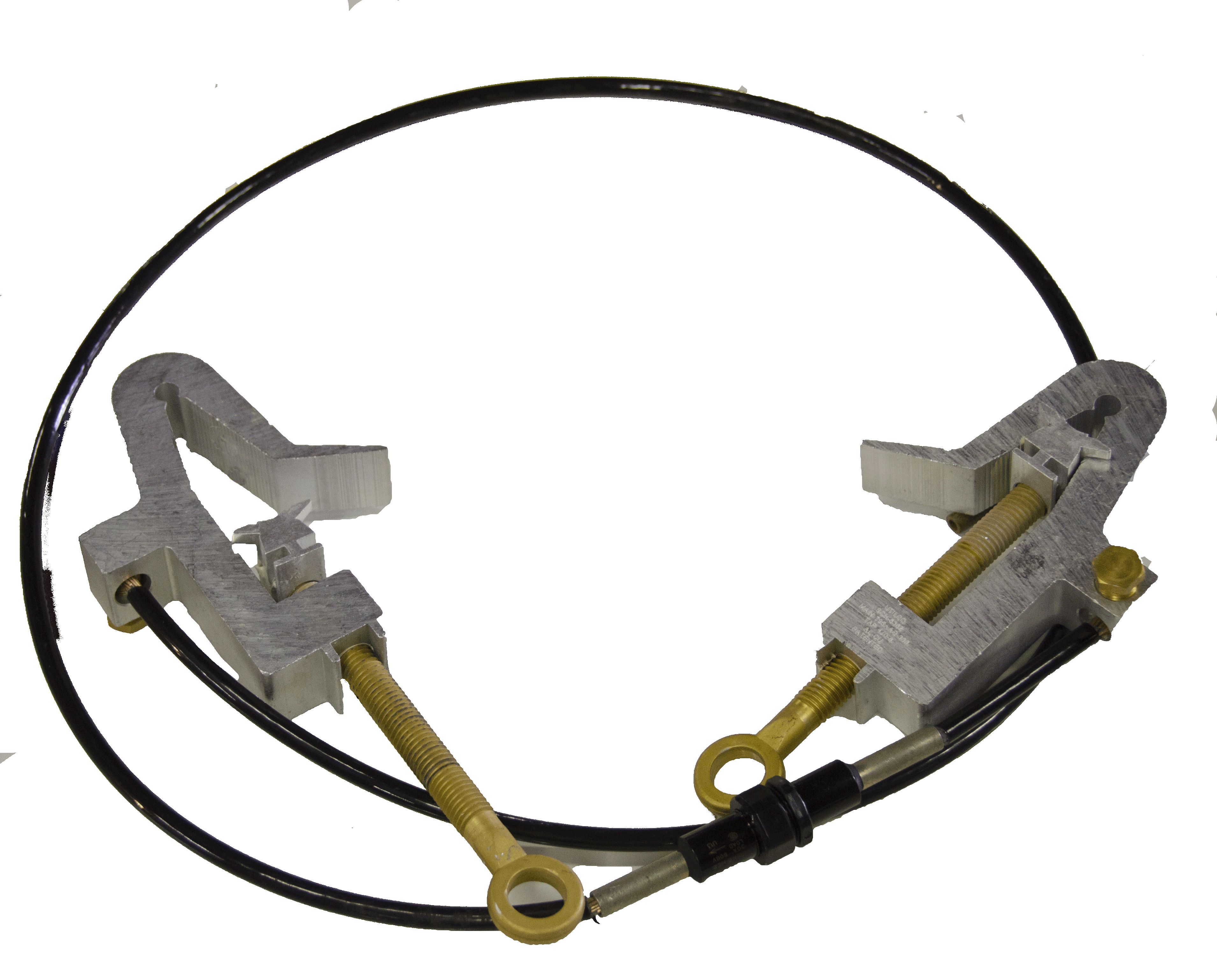

Fused Jumper for Surge Block Phase A to Phase B 40 inches M623-6AB

Fused Jumper for Surge Block; Phase B to Phase C 64 inches M623-6BC

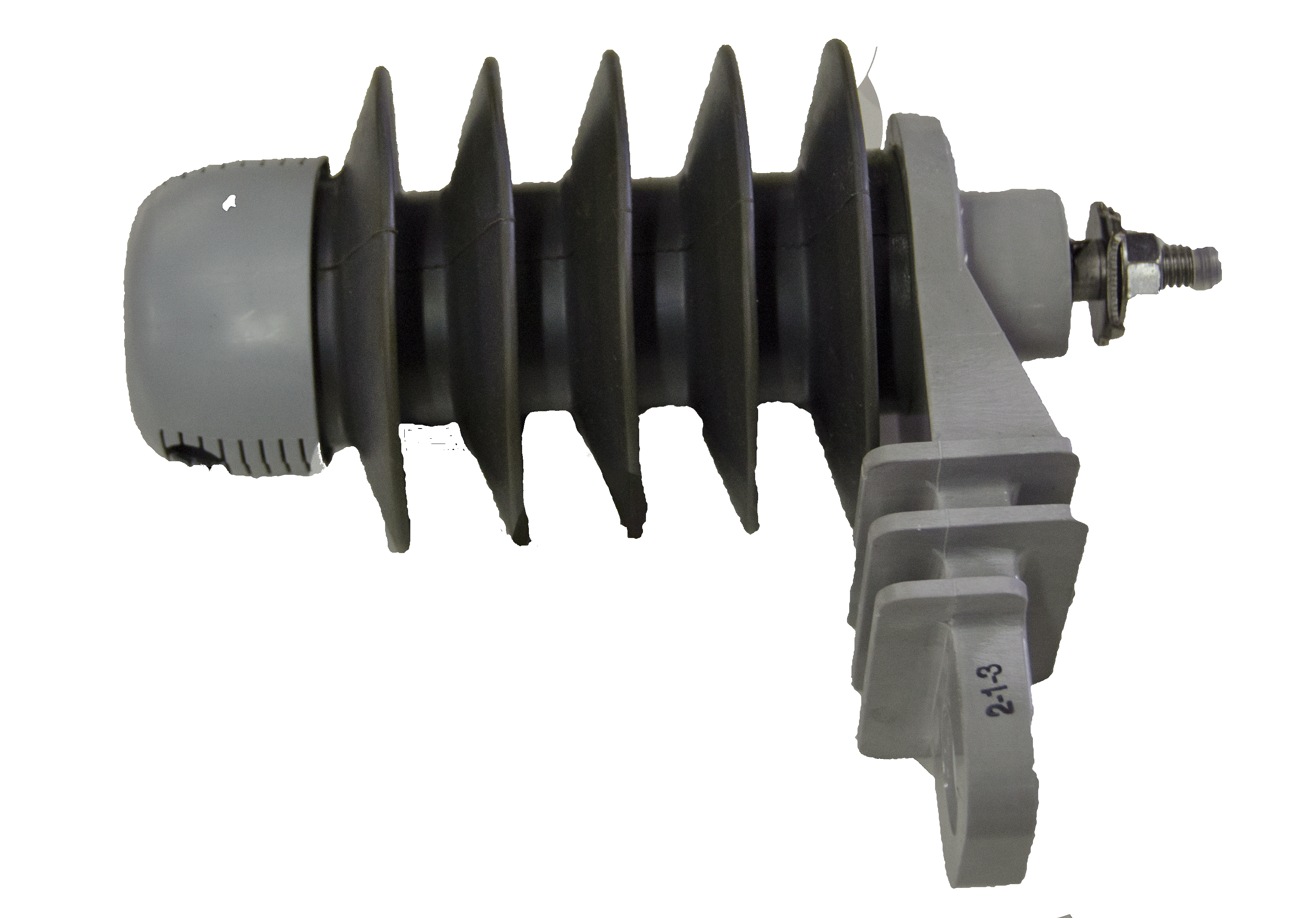

Lightning Arrestor - Supplied by Customer ---------

Series 600 Low Threshold Current Power Supply (LTPS) Parts

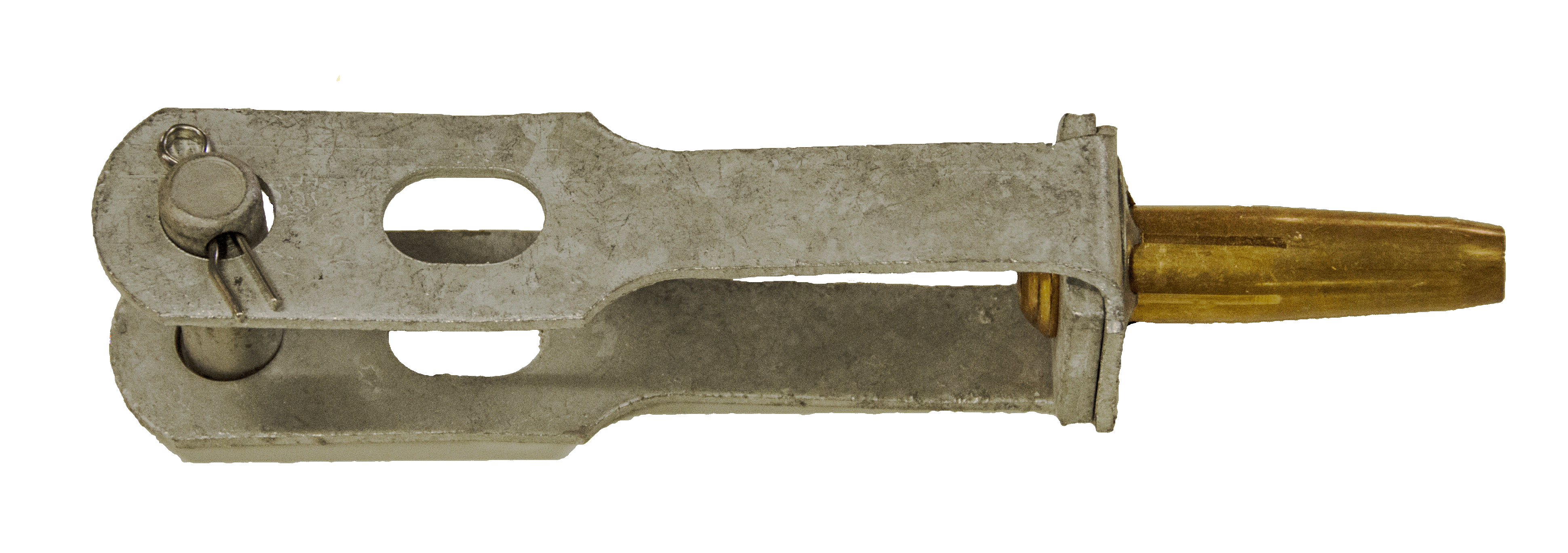

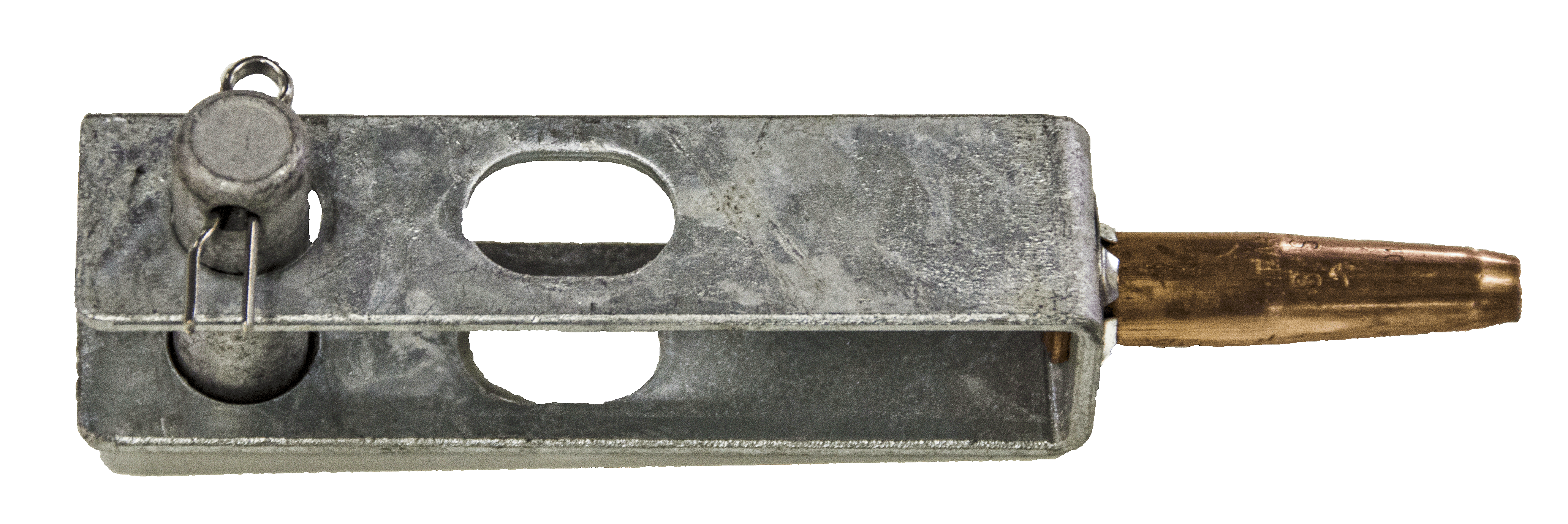

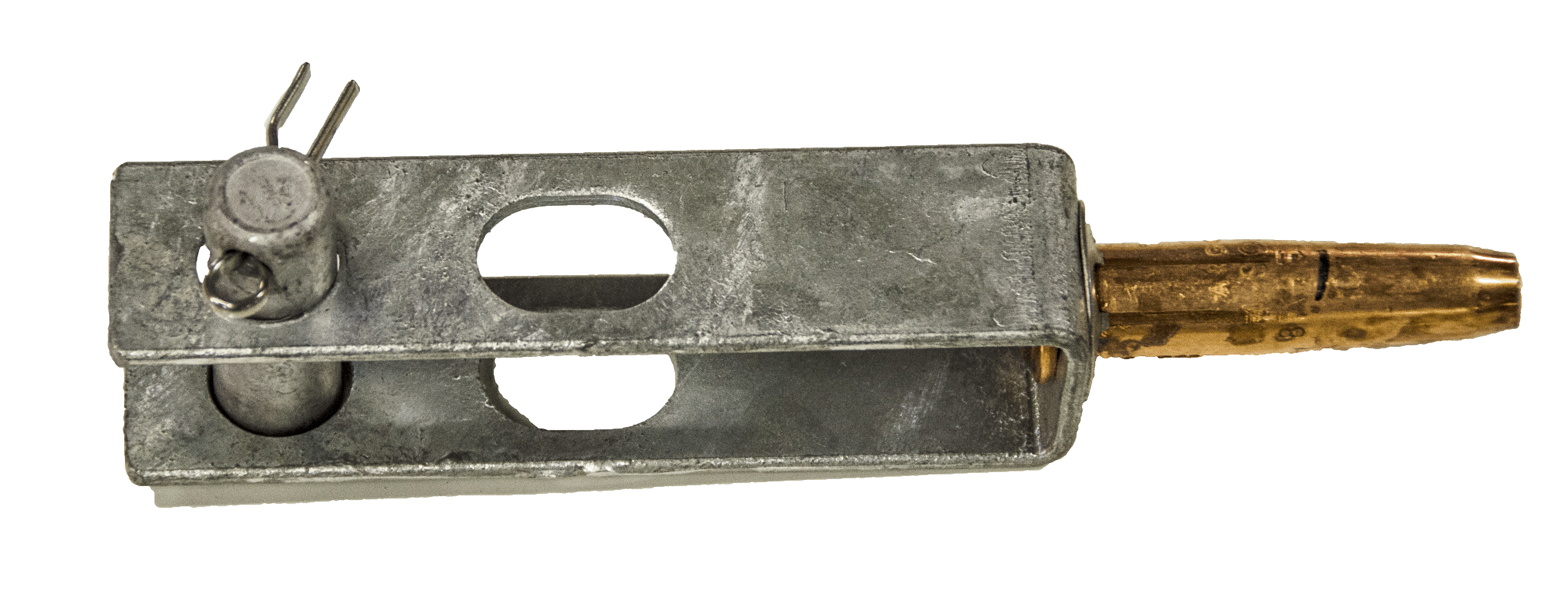

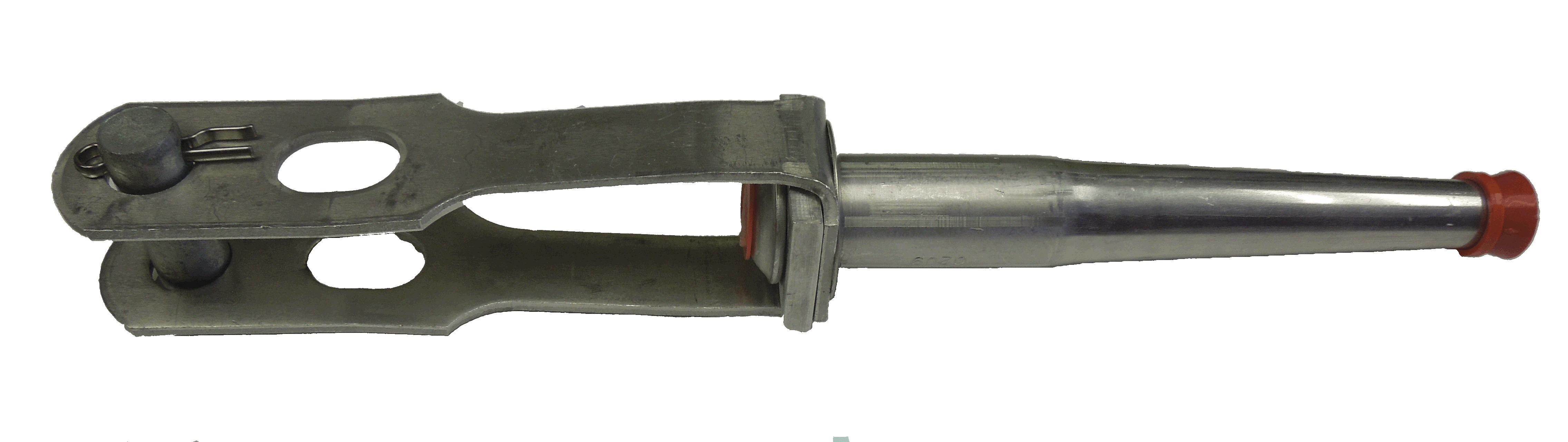

Automatic Deadends: NOTE: A = AUTOMATIC Deadend Part #

Conductor Diameter Range (#6 AWG solid) A#6

Conductor Diameter Range (#4 AWG solid, 8A CW) A#4

Conductor Diameter Range (#2 AWG solid, 5A CW) A#2

Conductor Diameter Range (#4 ACSR) (0.22-0.32 in.) A#4/#2 ACSR

<

Deadend Link M670-8A

Cantilevered Mounting Bracket M670-16

Series 600 Circuit Lateral Low Threshold Current Power Supply (LTPS) - Fixed Tap Alternatives

Threshold Current Alternatives are the following: Part #

6.8 amperes, 200 ampere rating M670-6.8 Shown with double automatic deadend mounting alternative

8.5 amperes, 250 ampere rating M670-8.5

11.3 amperes, 300 ampere rating M670-11.3

17.0 amperes, 350 ampere rating M670-17

Series 600 Circuit Lateral Low Threshold Current Power Supply - Switchable Tap Selector Switch / By-Pass Switch

PART Part #

6.8 amperes, 200 ampere rating or 17.0 amperes, 350 ampere rating. Note: Available for production prototype Units only. M672 Shown with double automatic deadend mounting alternative and Option B DSTR Unit

Series 600 Mounting Alternatives for M670 or M672

PART

A. Single Automatic Dead End and Links, Add Suffix A to Part Number above which is M670A for fix tap or M672A for switchable Jumper supplied by Customer

B. Double Automatic Dead End, Add Suffix B to Part Number above which is M670B for fix tap or M672B for switchable Jumper supplied by Customer

C. Cantilevered, Add Suffix C to Part Number above which is M670C for fix tap or M672C for switchable Both jumpers supplied by Customer

D. Suspension Add Suffix D to Part Number above which is M670D for fix tap or M672D for switchable NOTE: Suspension insulators, suspension clamps, and jumpers supplied by Customer

Series 600 Circuit Primary Low Threshold Current Power Supply - Fixed Tap

Threshold current 17 amperes, 350 amp rating M670P

NOTE: Suspension insulators, suspension clamps, jumpers and full tension deadend clamps supplied by Customer

Series 600 DSTR Transmitter-Receivers

PART Part #

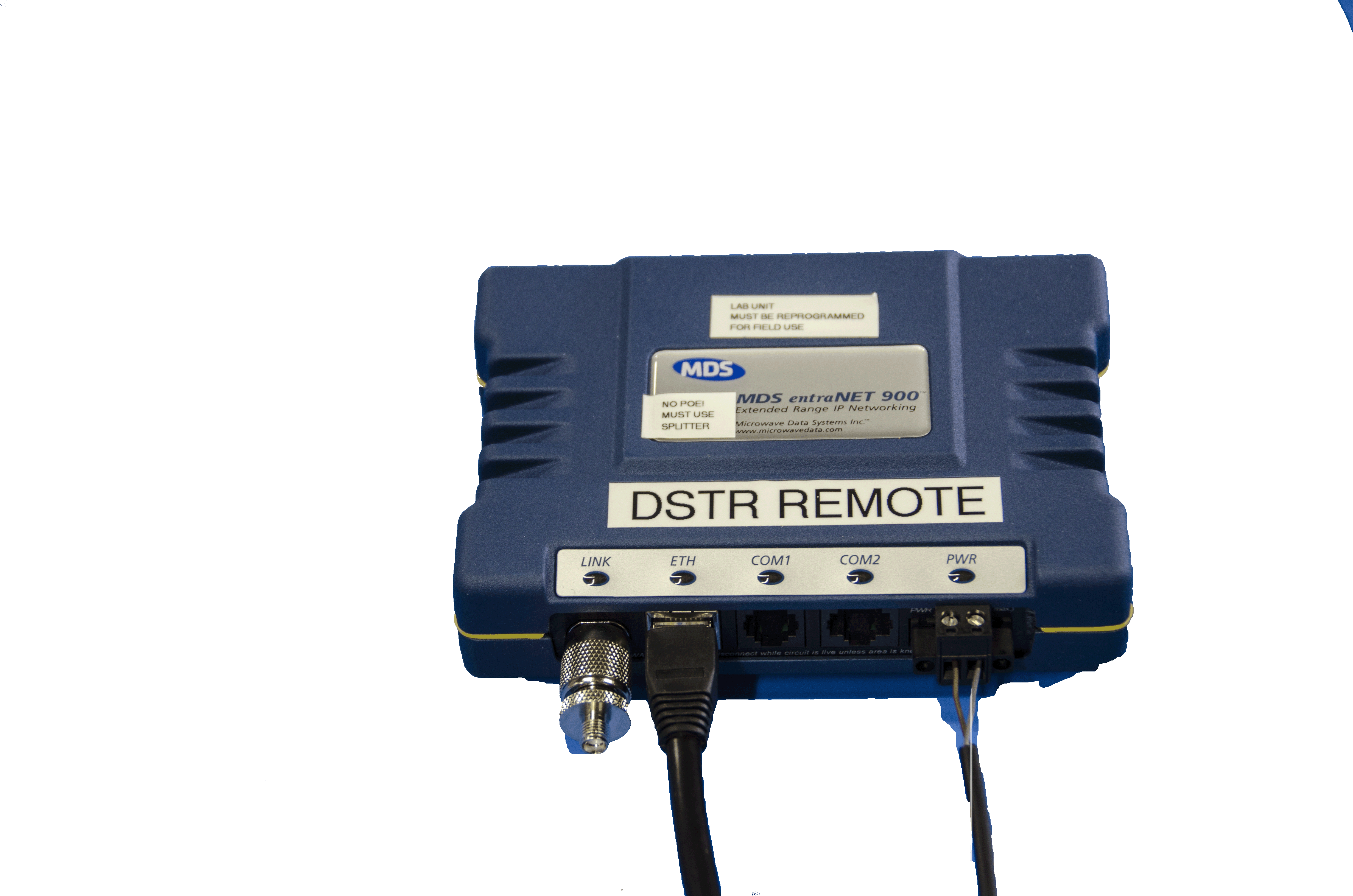

GE entraNET 900 Transmitter-Receiver, 900 MHz, DSTR Remote GE-900

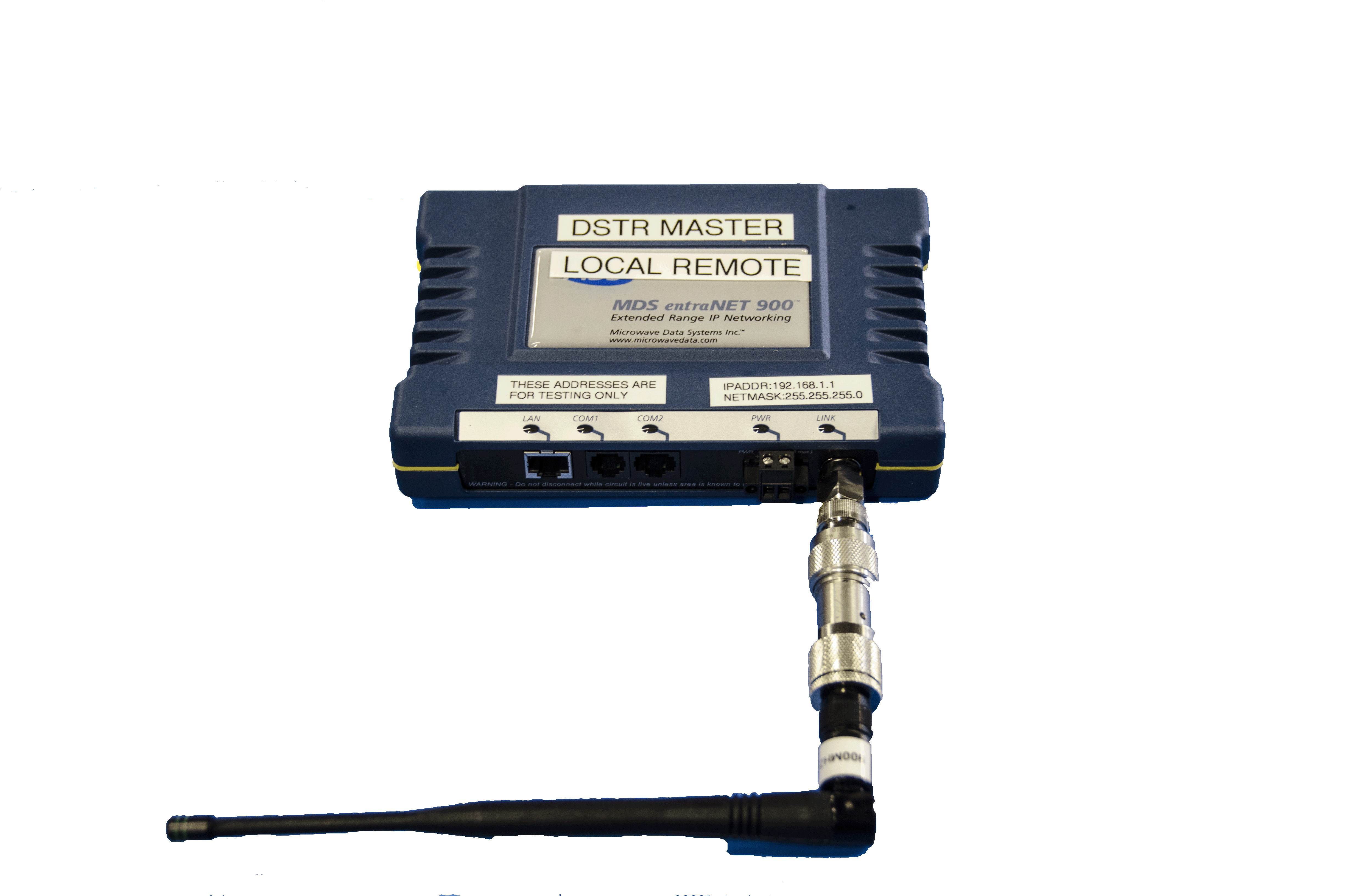

GE entraNET 900 Transmitter-Receiver, 900 MHz, DSTR Local Remote GE-900L

Ubiquiti M-2 Bullet Transmitter-Receiver, 2.4 GHz (Wi-Fi) DSTR Remote; UM2-2.4

Ubiquiti M-2 Bullet Transmitter-Receiver, 2.4 GHz (Wi-Fi) DSTR Local Remote UM2-2.4L

Automatic Deadends: NOTE: A = AUTOMATIC Deadend	Part #
Conductor Diameter Range (#6 AWG solid)	A#6
Conductor Diameter Range (#4 AWG solid, 8A CW)	A#4
Conductor Diameter Range (#2 AWG solid, 5A CW)	A#2
Conductor Diameter Range (#4 ACSR) (0.22-0.32 in.)	A#4/#2 ACSR

Threshold Current Alternatives are the following:	Part #
6.8 amperes, 200 ampere rating	M670-6.8	Shown with double automatic deadend mounting alternative
8.5 amperes, 250 ampere rating	M670-8.5
11.3 amperes, 300 ampere rating	M670-11.3
17.0 amperes, 350 ampere rating	M670-17

PART	Part #
6.8 amperes, 200 ampere rating or 17.0 amperes, 350 ampere rating. Note: Available for production prototype Units only.	M672	Shown with double automatic deadend mounting alternative and Option B DSTR Unit

PART
A. Single Automatic Dead End and Links, Add Suffix A to Part Number above which is M670A for fix tap or M672A for switchable	Jumper supplied by Customer
B. Double Automatic Dead End, Add Suffix B to Part Number above which is M670B for fix tap or M672B for switchable	Jumper supplied by Customer
C. Cantilevered, Add Suffix C to Part Number above which is M670C for fix tap or M672C for switchable	Both jumpers supplied by Customer
D. Suspension Add Suffix D to Part Number above which is M670D for fix tap or M672D for switchable	NOTE: Suspension insulators, suspension clamps, and jumpers supplied by Customer
